How to Read a Tape Measure – Tips and Photos

How to Read a Tape Measure

Reading a Tape Measure Can Be Easy If You Know What to Look For

Learning how to read a tape measure is one of the first things any Pro or DIYer has to learn. If the old adage “measure twice, cut once” is true, you’ll never get to the cut if you don’t know what you’re reading.


Parts of a Tape Measure

Milwaukee Stud

Before we look at reading the tape measure, let’s go over some of the basic parts. Tape measures may differ in how some of these parts and features look, but most fall into these general categories:

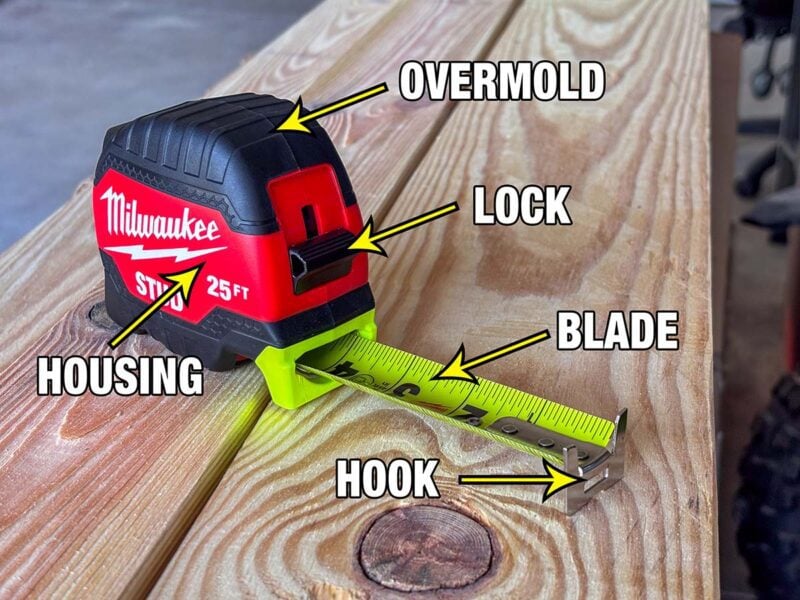

  • Hook: the end of the tape that grabs or pushes against material
  • Blade: the “tape” in a tape measure that has the measurements printed on it
  • Housing: the plastic or metal case that the blade rolls back into

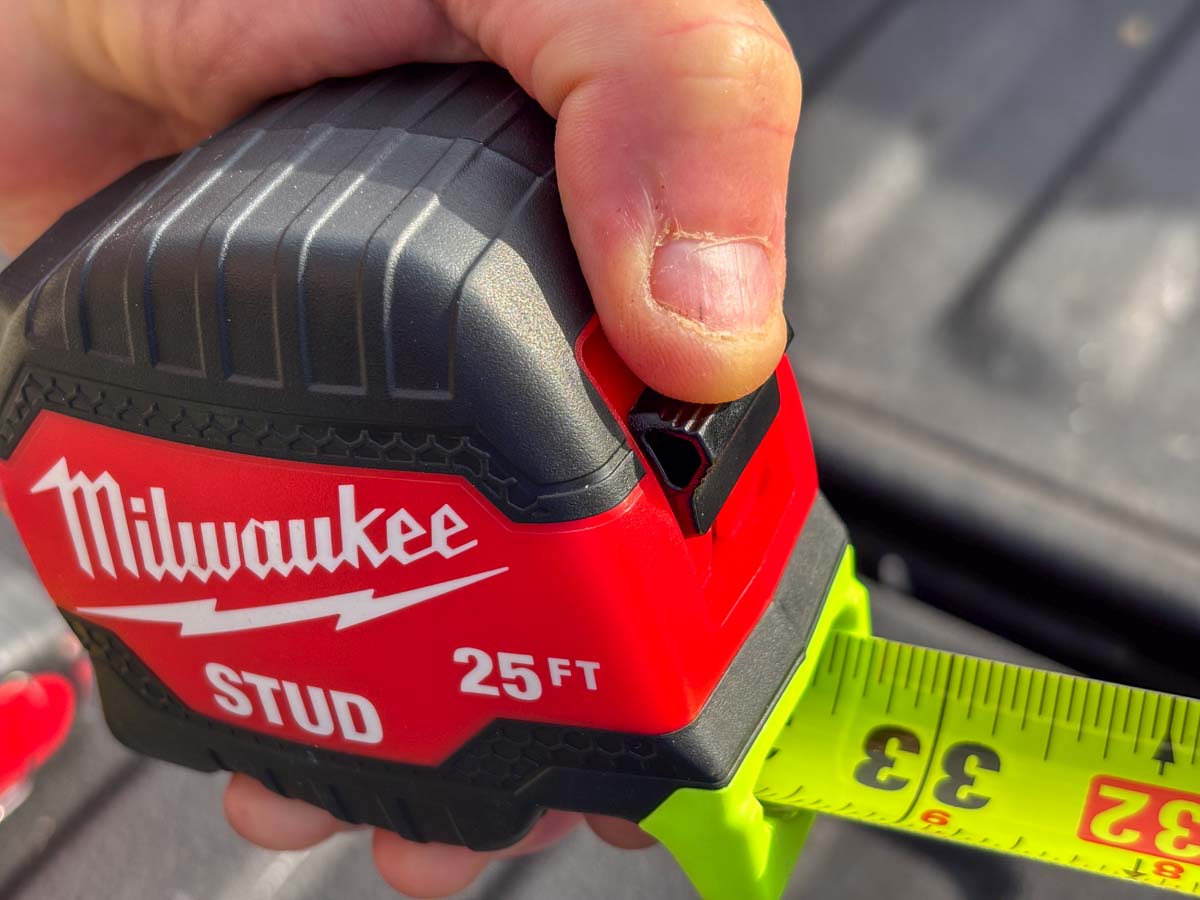

  • Lock: the sliding piece on the front of the tape that stops it from coming back in when you press it down
  • Clip (or Belt Clip): a metal piece on the side that clips the tape to your belt, pocket, or bag
  • Overmold: rubberized material on the housing that adds comfort and drop protection

How to Read a Tape Measure in Inches and Feet

Tape measures do their most basic work in inches and feet. These are the clearest, boldest markings you’ll see. Starting at the hook, it has number markings for every inch, followed by additional numbered markings for every foot.

Once you get beyond 1 foot, the inch markings keep going up with 13, 14, 15, etc rather than starting over at 1. Some tapes have an additional smaller number that goes with the last foot mark you hit. For example, it might show you that 22 inches are also equal to 1 foot, 10 inches.


Measurements past the foot mark

In between each full blade width inch marking, there are a series of smaller ones. They are different sizes to help you easily identify which is which. Some tapes even have fractions printed on them, making them easier to read.

How to Read a Tape Measure Fractional Markings

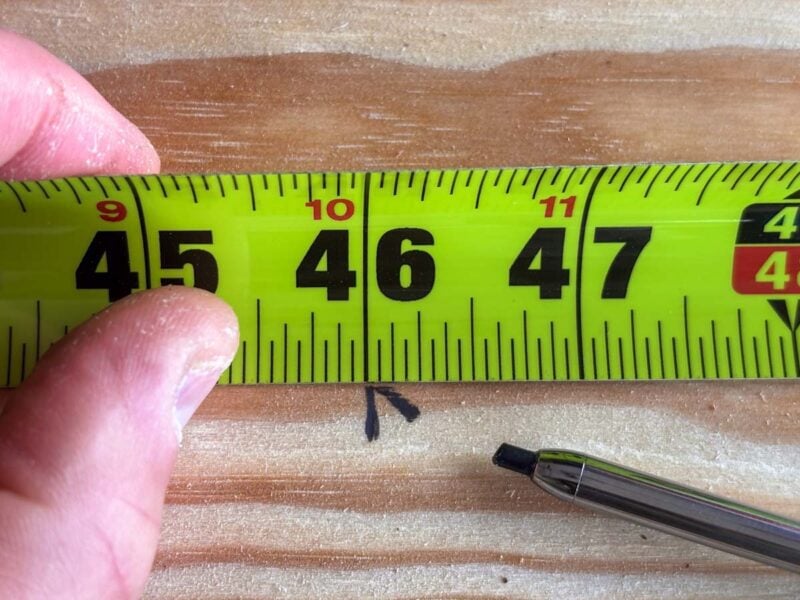

When you’re learning how to read a tape measure, note the majority break each inch into 16 sections. In other words, you can read a tape measure with 1/16-inch accuracy. The 1/2-inch mark is the longest, followed by the 1/4-inch marks, then the 1/8-inch marks. The 1/16-inch marks are the shortest. Reading from the beginning of an inch forward, here’s what the pattern looks like (the marks will be solid on the blade):

  • — 1/16
  • — 1/8
  • — 3/16
  • —- 1/4
  • — 5/16
  • — 3/8
  • — 7/16
  • —– 1/2
  • — 9/16
  • — 5/8
  • — 11/16
  • —- 3/4
  • — 13/16
  • — 7/8
  • — 15/16

How to Read a Tape Measure In Millimeters (mm)

How to Read a Metric Tape Measure

If you’re learning how to read a tape measure in millimeters, things change a bit. Metric tape measures break down into 10 millimeters for every centimeter. Counting up just like a standard tape, these don’t have indicators for feet, but every 10th centimeter is red or has some other way to stand out. They also may have meters marked

As you read between each centimeter mark, every short mark is 1 millimeter and the 5th is typically longer to help your eyes find the middle easily. The nice thing is you’re not bounding between fractions. It’s a far easier decimal conversion. 13 cm and 4 mm is simply 13.4 cm.

Some tape measures—not many—even provide both measurements on the same tape. While this can be handy, it also clutters up the visibility of the markings in our opinion. We rarely need both metric and standard at the same time. If you work with materials that require metric unit measurements—make sure you have at least one of these tapes handy. In either case—pay attention to the labeling on the tape itself and buy the right one!

Milwaukee Stud 8m tape measure
Milwaukee Stud 8m 26ft tape measure
Milwaukee Stud 25ft tape measure

How to Read a Tape Measure Special Markings

Why are Some Numbers Red on a Tape Measure?

There are a couple of special markings you might notice as you read your tape measure specifically for contractors. Every 16 inches (16, 32, 48…), there’s a bold, red, or colored-in mark that’s different from the others. These mark a standard 16-inch stud placement.

How to Read a Tape Measure Special Markings

What Do the Black Diamonds Mean on a Tape Measure?

Then there’s the mysterious floating black diamond. The measures aren’t on an exact inch like the stud markings. These are at 19 3/16, 38 3/8, 57 9/16, and 76 3/4. They’re for setting trusses. Specifically, they’re for setting six trusses on an 8-foot span—the length of a sheet of plywood. The 0 mark and 8-foot mark make up two and there are four black diamonds in between.

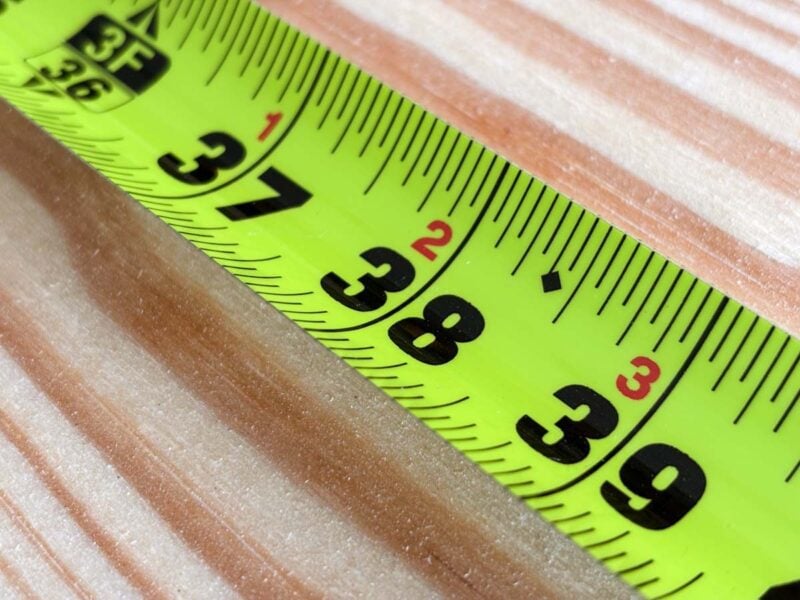

How to Read a Tape Measure Black Diamond

While we aren’t going into detail on these, here are a few other special tape measure markings we’ve seen:

  • Conduit bending guide
  • Blueprint guide
  • Yard markings
  • 1/32-inch markings

Does the Hook Affect Tape Measure Accuracy?

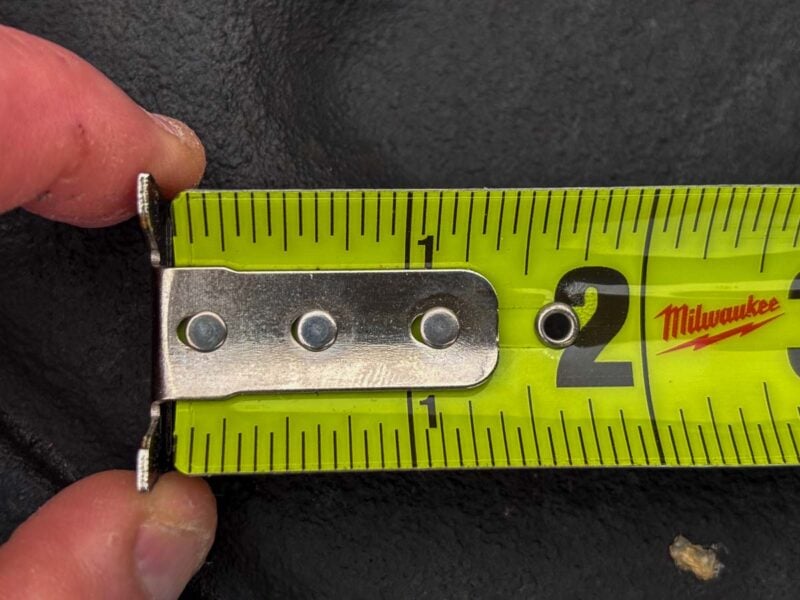

The hook slides back and forth at the front of the blade and that’s intentional. It slides the exact width of the hook so whether you’re pushing it against material or pulling from the side, you get an accurate measurement.

Does the Hook Affect Tape Measure Accuracy

Have any questions about reading a tape measure? Drop them in the comments below and we’ll answer them for you!

Like the tape measure we used in the photos? It’s the 25-foot Milwaukee Stud and we highly recommend it!
