Every trade has its hazards – it’s why tradesmen get paid the big bucks, right? Well, maybe not. In any event, the electrical trade probably has the most invisible hazards of them all. Carpenters can see a spinning blade might cause injury. It’s clear to plumbers why wastewater is detrimental to their health. But is that line live? Does that service panel have loose or corroded connections? It’s never immediately clear. You usually have to make physical contact with wires to find out. Of course, it’s always wise to de-energize. I might have made a new catchphrase just then. We like tools that can put as much space between us and the danger as possible. Flir’s contributions to infrared technology can’t be understated. Even still, infrared can’t measure current. So to come across a measuring device that still keeps you safe – well, Pros are all ears. That’s the promise of the new Fluke T6-1000 Electrical Tester.

How so? Fluke claims that for the first time in the history of the trade, Electricians can measure up to 1000V through the tool’s open fork without removing covers or loosening wire nuts. I’m listening!

Top Features

Fluke FieldSense

The Fluke brand name is enough of a selling proposition for most electrical Pros – and with good reason since the company makes solid products. But the novel selling proposition of the T6 – an industry first – is its ability to display both voltage and current simultaneously. And that’s not all. It shows these power supply measurements without making contact to live voltage. Using its 17.8mm open fork it can measure up to 1000V AC, 200A, 1 Ω to 100 kΩ, and 45 Hz to 66 Hz on 4/0 wires. It’s a true-RMS (Root Mean Square) meter, measuring both sinusoidal and nonsinusoidal waveforms by converting AC waveforms into their DC equivalents.

Form Factor

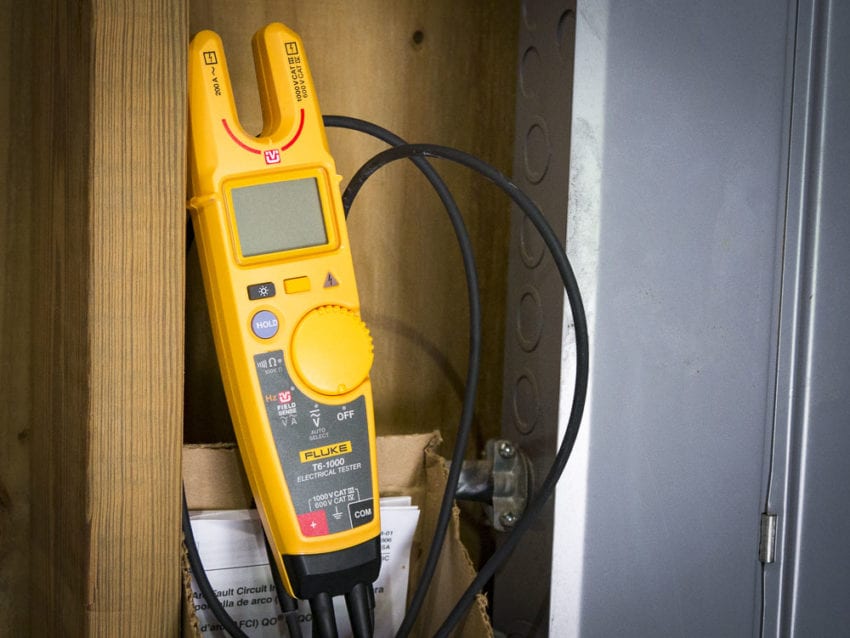

In addition to the open fork design, you’ll notice a clean, uncluttered interface and a shape similar to your regular meter. Front and off-center is the function selection dial that switches among power on/off, voltage auto select, FieldSense, and resistance. The meter has an automatic shutoff after 15 minutes. Two small ridges just below the open fork create a finger guard for safe operation.

Fluke T6-1000 Electrical Tester Review

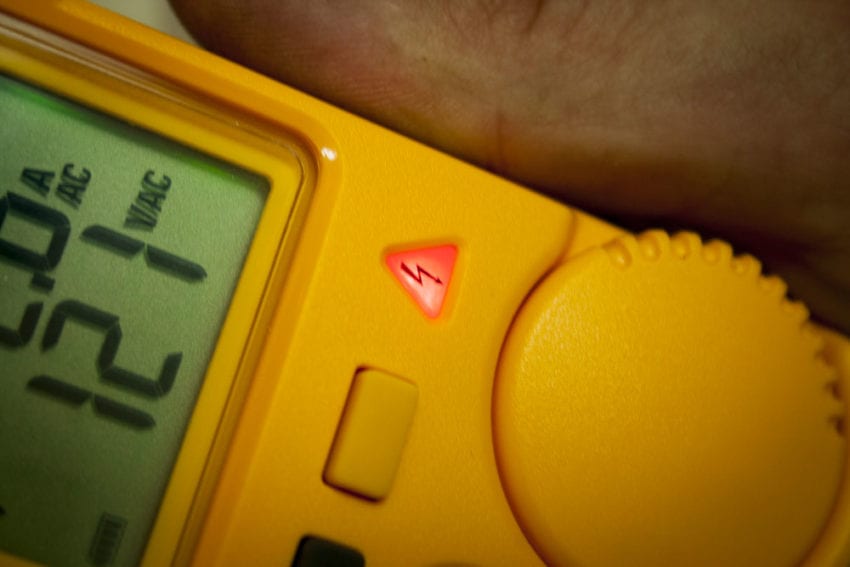

There’s a hazardous voltage warning light indicator for 30V, a button that toggles the backlit display, a yellow button that displays Hz in FieldSense mode, and Hold button that temporarily freezes the display.

Fluke T6-1000 Electrical Tester Review

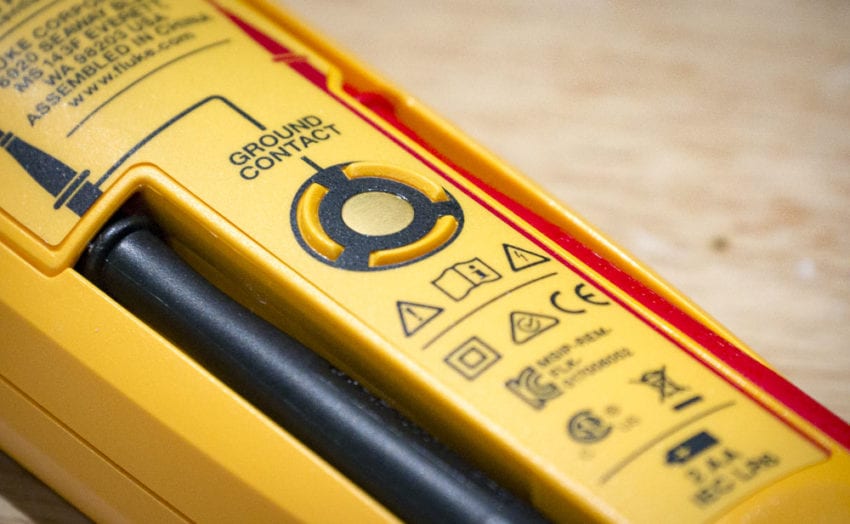

The test probe docking stations are on the back of the unit – nothing special there – but between the stations is a curious area labeled Ground Contact. It’s this Ground Contact that is designed to allow FieldSense to work its magic. We’ll see just how it does that in the Performance section.

Fluke T6-1000 Electrical Tester Review

On Display

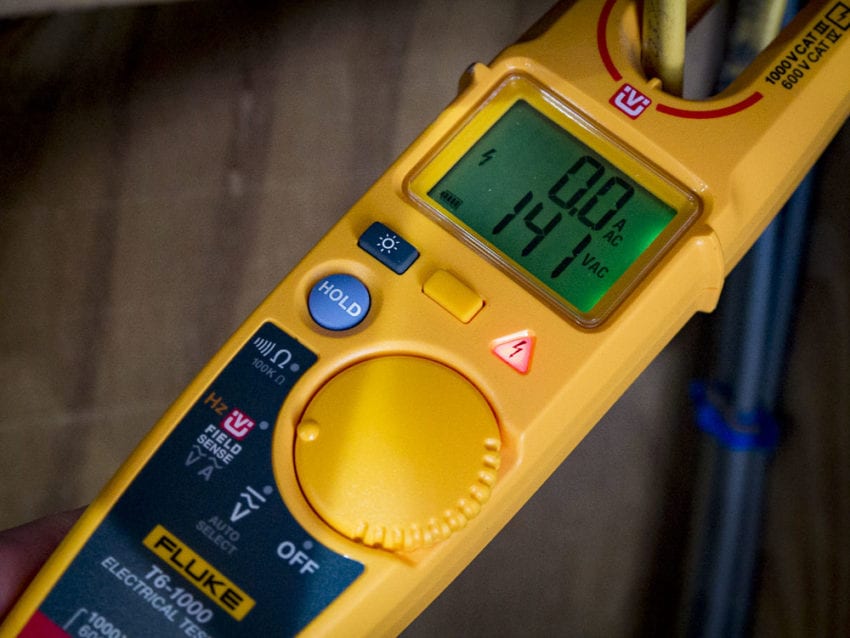

All this fancy technology doesn’t mean a hoot if you can’t clearly see the measurement readings. For that purpose, the Fluke T6-1000 Electrical Tester has a large digital, backlit display that boldly shows both Volts and Amps in FieldSense Mode. What’s more: the backlit display turns green when it gives you a valid measurement. It seems like Fluke has really designed this to make our jobs easier!

Fluke T6-1000 Electrical Tester Review

Other Notable Features

The whole package weighs in at 0.78 pounds and runs on 2AA batteries. Fluke estimates that you’ll get about 200 hours of operation running on them. The test leads have removable 4mm probe caps and the unit accepts the optional Fluke TPAK Magnetic Meter Hanger. The company backs up the tool with a standard 2-year warranty extendable to 4 years through product registration within 45 days of purchase.


Making FieldSense Method 1


There are two ways to take measurements with FieldSense and, of course, neither of them require a test lead to come in contact with live current. The first way, however, does require the black test probe to be used as a ground.

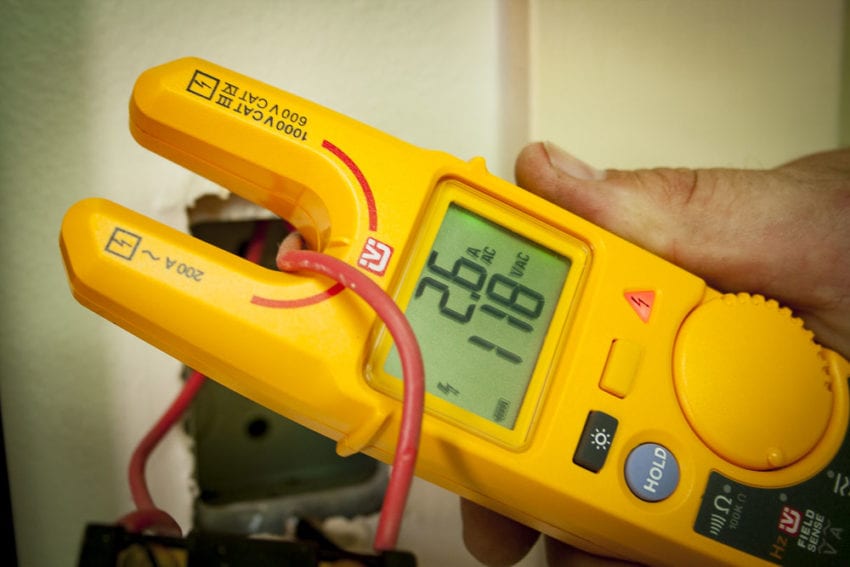

Set the Fluke T6-1000 Electrical Tester to FieldSense with the Function Selection dial. Touch the probe to the neutral and slip the hot wire into the open fork, keeping all fingers below the finger guard. The backlit display turns green with a valid measurement. Press hold to keep the display reading on the screen temporarily or press the yellow button for Hz.

Fluke T6-1000 Electrical Tester Review

You don’t have to take any splices apart. You don’t have to shove the lead up into a wire nut. It’s safer and that’s pretty cool. Fluke suggests using this method if you’re wearing a glove or insulated footwear, standing on an insulated ladder, or additional ground contact is needed for the application.

One caveat here: although you can touch the black test lead to any ground, the Fluke T6-1000 Electrical Tester won’t tell you if you’re running with an open neutral unless you’re touching actual neutral. I did this by opening up a neutral in my own house to see what it would do. Don’t get me wrong – measuring voltage without touching live current by touching the black lead to any ground is still awesome. The neutral indication, or lack thereof, is just something to keep in mind.

I tested the open fork’s accuracy/consistency by using the test leads to measure in the traditional way. The open fork method is spot on.

Making FieldSense Method 2

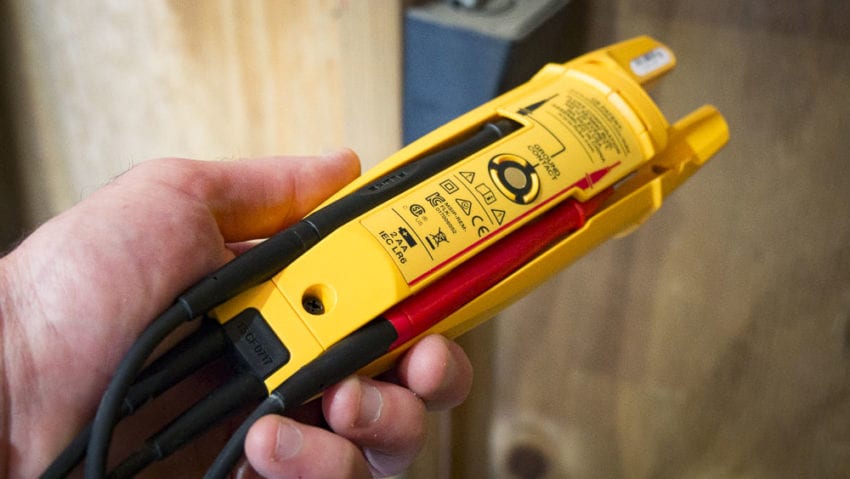

The second way – and even easier in theory – is to essentially make yourself the groud using the Ground Contact area on the back of the unit. Both probes can remain docked for this process. Again, slip the open fork around the wire being measured and this time, firmly press Ground Contact. The display should again turn green as it gives you a valid measurement.

Fluke T6-1000 Electrical Tester Review

Unfortunately, I had less luck with this method. Whereas voltage and amperage registered without fail using the first method, they didn’t register as reliably this way. Fluke’s tips suggest if the No Earth Ground Connection icon appears in the upper left corner, the display remains grey (and not green), and no VAC measurement registers then you should make sure:

  1. Your bare hand is firmly touching the FieldSense Ground Contact area
  2. The black probe is properly stored in the dock
  3. The wire is properly inside the fork opening

If no icon appears in the upper left corner, the display remains grey, and no VAC measurement registers (in other words, you’re grounded properly but there’s no reading), then the measurement is less than 16V and/or the wire’s not properly running through the fork.

It can difficult with shorter or smaller wires to touch ground and keep the wires in the fork simultaneously. You can still use Method 1 in those cases.

Breaker One-Nine

During a recent job at a car dealership, I had to determine what breaker needed replacement. There were ten specialty 80A breakers in the panel – none of them were off or tripped – they all appeared to be on. Using the Fluke T6-1000 Electrical Tester’s open fork, I was able to see how many volts and amps each breaker was pulling much more quickly and safely than I could with a traditional meter. I simply put the open fork around each wire until I found the one that wasn’t carrying any current at all.

Measuring Up

The test lead cords wrap up nicely. I can hang the meter by the wrapped cords on a hook in the truck. Most meters don’t have a way to be hung is really a pet peeve, so bonus points to the Fluke T6-1000 Electrical Tester. It would be great if the black test lead was interchangeable with an alligator clip for ground attachment. And I hope that the next generation is Bluetooth capable so that I can see a dynamic graph of inrush, voltage drops, overamping, underamping, and so on. The Southwire Clamp Meter I reviewed a while back had this capability and it’s very helpful.

The Bottom Line

The Fluke T6-1000 Electrical Tester is a significant step forward in meter technology. I think this meter will have other companies scrambling to catch up. It truly is safer and quicker to use this meter with its open fork than to touch a test lead to any live current.

But you have to expect some limitations with a first generation meter like this. Keep in mind the open neutral issue – you have to touch the test lead to neutral and not just ground it to know if neutral is open or not. And Fluke really can make the Ground Contact method a little more foolproof. Overall, though, for this meter’s capabilities, it has good performance for a first generation meter and is fairly priced at $225.

Fluke T6-1000 Electrical Tester Features

  • FieldSense technology for AC voltage, current and frequency measurement without making electrical contact to live voltage
  • Simultaneous voltage and current display – shows all power supply measurements at a glance for efficient troubleshooting
  • 1 to 1000V AC or DC (T6-1000)
  • 0.1 to 200A AC
  • True-RMS voltage and current
  • Resistance 1 Ω to 100 kΩ
  • Frequency measurement 45 Hz to 66 Hz
  • Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
  • HOLD button temporarily freezes the reading for easy viewing
  • Easy to read display with backlight
  • Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
  • Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase

Fluke T6-1000 Electrical Tester Specifications

  • Model Number: T6-1000
  • Calibration: 1-year calibration cycle
  • Dimensions: 61.1 x 259.3 x 43.8 mm
  • Jaw opening: 17.8 mm
  • Weight: 0.78 lb
  • Temperature Operating -10 °C to +50 °C (14 °F to 122 °F)
  • Storage -30 °C to +60 °C (-22 °F to +140 °F)
  • Altitude Operating 2,000 m (6,562 feet)
  • Storage 10,000 m (32,808 feet)
  • Relative Humidity:
    • a) 0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
    • b) 0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
    • c) 0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
  • Battery Type and Life: 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
  • Temperature coefficient:
    • 0.1 x (specified accuracy) / °C for <18°C or >28 °C
    • 0.1 x (specified accuracy) / °C for <18°C or >28 °C
  • Safety: IEC/EN 61010-1: Pollution Degree 2
  • Electromagnetic Environment: IEC/EN 61326-1: Portable
  • Price: $225
  • Warranty: 2 years (4 years with registration)
