Klein 20V Max Tools For Electricians

Klein 20V Max

Remember those old comic book crossover issues? Not so much the ones where Marvel characters made an appearance in other Marvel titles, like Spiderman showing up in a few X-Force issues, but when characters hopped brand divisions. I’m thinking more like the time when the Incredible Hulk jumped his way into the DC universe to dole out a beating on the Batman. It was a whole lot of fun for us comic book super nerds, and I’ve got to imagine that from a business perspective, the Marvel/DC team-up issues drove some serious comic sales. What does that have to do with Klein 20V Max tools?

I bring this up, not only for the sake of my own nostalgic self-indulgence but also to draw a parallel for all you power tool super fans out there. It seems like Klein and DeWalt have their own “crossover issue” in the works right now. For those electricians out there who love a good Klein tool, but wish there were a few cordless Klein options out there, prepare to nerd out real hard. Klein has teamed up with DeWalt in order to bring a line of battery-powered electrician’s tools to market. The new line of Klein 20V Max tools for electricians will include a cordless 7-ton cable cutter and crimper, a cordless 12-ton crimper, gear-driven cordless cable cutters, and a 7/16″ cordless impact wrench. All of these new tools will run on DeWalt’s 20V Max battery platform.

From Klein

“Klein’s new line of battery-operated tools helps linemen work more efficiently by reducing time and effort spent on each task. The complete product line is built to be Klein tough, standing up to the jobsite challenges professionals face every day. Powered by DeWalt lithium-ion batteries, these tools help get the job done with greater cutting, crimping and drilling power than alternative models.”

-Kozeta Topchian, product manager at Klein Tools

And Don’t Forget…

 Klein 20V Max tools are also compatible with DeWalt FlexVolt batteries. So whether you’re going for the most runtime or the lightest weight, there’s a wide range of battery packs to choose from.

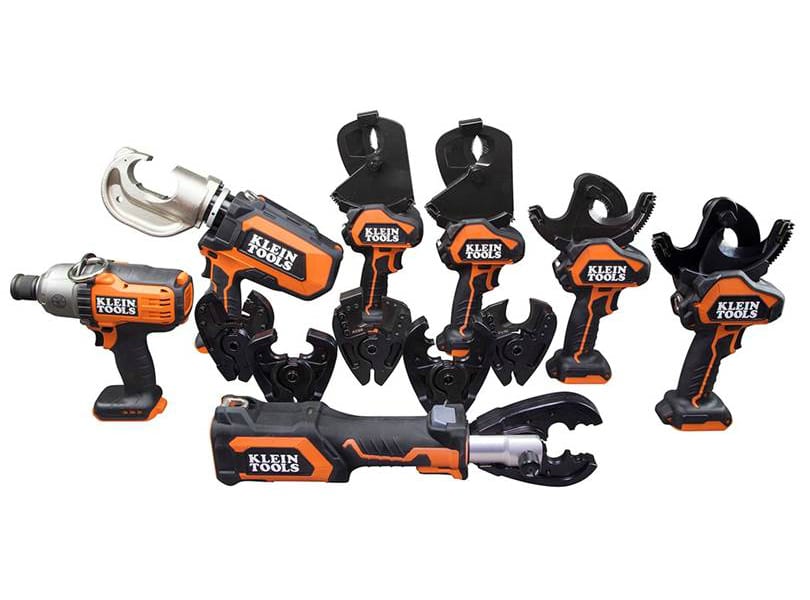

New Klein 20V Max Offerings

7-Ton Cable Cutter and Crimper Kit Features

  • Klein 20V MaxModel Number: BAT20-7T14
  • Cuts and crimps copper, aluminum, ACSR, EHS Guy wire and Grade 8 steel bolts
  • Includes tool, 3 cutting jaws, 3 crimping jaws, two batteries, charger, and bag
  • 7-ton hydraulic force cuts and crimps a larger capacity faster than similar models on the market
  • Green light indicator confirms a good crimp has been made
  • Two work lights illuminate darker spaces
  • Replacement blades available
  • Powered by DeWalt 20V lithium-ion batteries
  • Compatible with industry standard W-style dies

7-Ton Cable Cutter and Crimper Kit Specs

  • Powered by DeWalt 20V Lithium-Ion Batteries
  • Cable Capacity (Aluminum): 1000 MCM
  • Cable Capacity (Copper): 750 MCM
  • Cable Capacity (ACSR): 556 MCM
  • Cable Capacity (Guy Strand): 3/8″ EHS
  • Bolt Maximum Capacity: 3/8″ Grade 8
  • Height: 12″
  • Length: 26″
  • Width: 6″
  • Weight: 32.1 lb
  • Klein 20V MaxBattery Life: 2 hrs.

12-Ton Crimper Kit Features

  • Model Number: BAT20-12T1651
  • 12 tons of force crimps copper, aluminum, and ACSR
  • The 360-degree rotating head provides flexibility in positioning

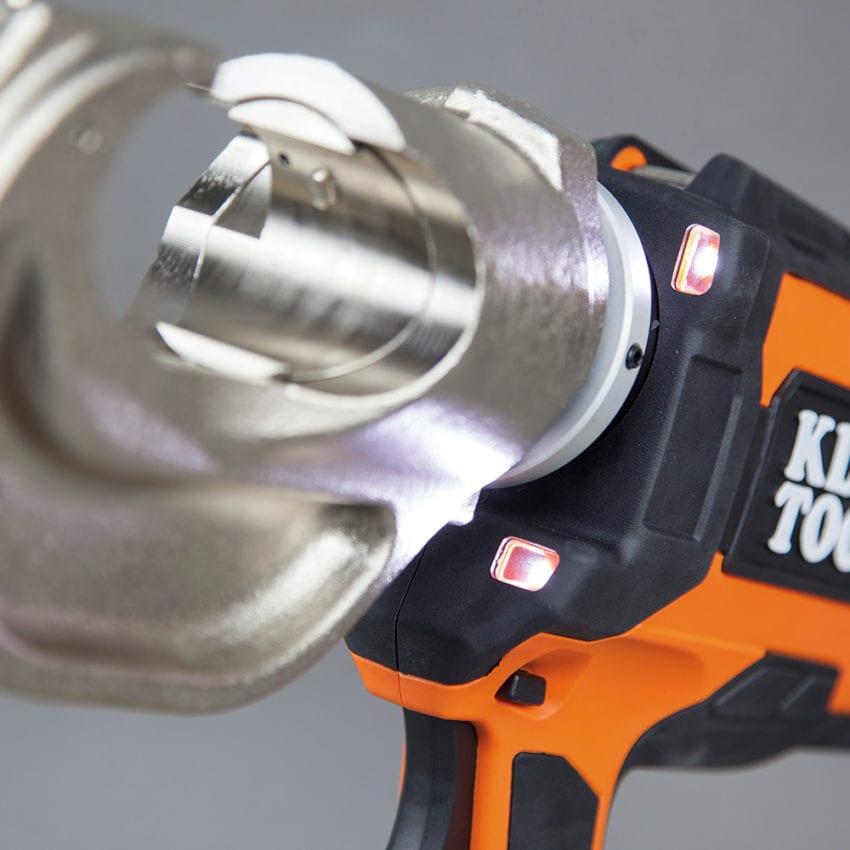

  • Green light indicates full pressure to confirm when a good crimp has been made
  • Four working lights to help illuminate dark work areas
  • Compatible with industry standard U-style dies
  • Safety lockout switch for extra safety on the job
  • Includes tool, two batteries, charger and case
  • Powered by a DeWALT 20V lithium-ion battery

12-Ton Crimper Kit Specs

  • Klein 20V MaxPowered By DeWalt 20V Lithium-Ion Batteries
  • Copper Cable Capacity: 8 AWG to 750 MCM
  • Aluminum Cable Capacity: 8 AWG to 750 MCM
  • ACSR Cable Capacity: 556 MCM
  • Length: 22-5/8″
  • Width: 17-1/16″
  • Height: 6-37/64″
  • Weight: 28.2 lbs
  • Battery Life: 4 hr.

Gear-Driven Cable Cutters Features & Specs

  • Model Numbers: BAT20-G1, G10, G2, G7
  • Closed-jaw style provides higher cutting capacity
  • Safety lockout switch
  • Two work lights illuminate darker spaces
  • Replacement blades available
  • Powered by DeWalt 20V lithium-ion batteries
  • Klein 20V MaxBAT20-G1 cuts up to 600 MCM copper, 1500 MCM aluminum, and 1590 MCM ACSR cable
    • Length: 21-5/8″
    • Width: 9-3/4″
    • Height: 6-5/6″
    • Weight: 13.2 lb
  • BAT20-G10 cuts 750 MCM copper and 1500 MCM aluminum
    • Length: 21-5/8″
    • Width: 9-3/4″
    • Height: 6-5/6″
    • Weight: 13.3 lbs
  • BAT20-G2 (open jaw style) cuts up to 400MCM copper, 900 MCM aluminum, and 795 MCM ACSR cable
    • Length: 21-5/8″
    • Width: 9-3/4″
    • Height: 6-5/6″
    • Weight: 15.3 lbs
  • BAT20-G7 (open jaw style) cuts up to 600 MCM copper and 1000 MCM aluminum cable
    • Length: 21-5/8″
    • Width: 9-3/4″
    • Height: 6-5/6″
    • Weight: 15.2 lbs

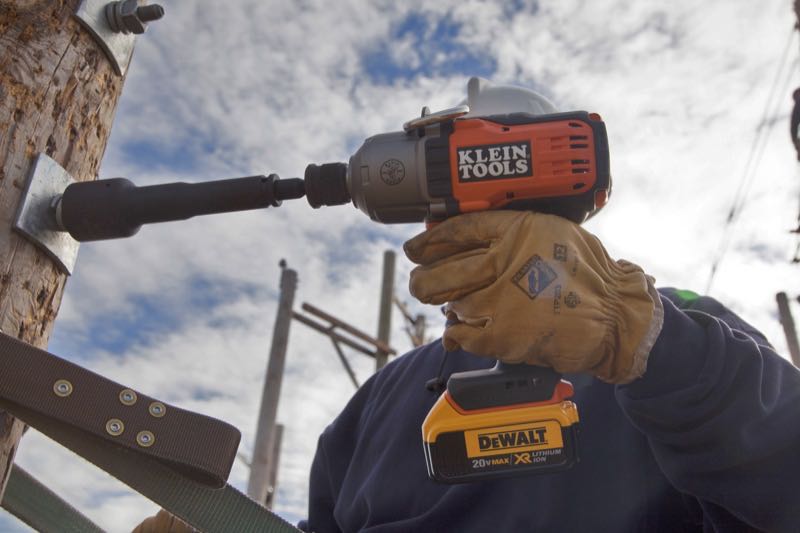

Klein 20V Max7/16″ Impact Wrench Kit Features

  • Model Number: BAT20-7161
  • Up to 500 ft-lbs of max torque for driving fasteners into wood, metal, and concrete
  • 7/16” (11 mm) quick-release chuck
  • 0 -1900 RPM variable speed trigger for better control
  • Safety lockout switch
  • Brushless DC motor
  • Powered by DeWALT 20V lithium-ion batteries
  • Includes batteries, charger, and bag

7/16″ Impact Wrench Kit Specs

  • Impacts Per Minute: 0-2400 IPM
  • Max Speed: 1900 RPM
  • Torque Rating: 500 ft-lbs
  • Length: 18-3/4″
  • Height: 11-3/8″
  • Width: 6″
  • Weight: 13.3 lb
