Hitachi AC Brushless Rotary Hammer Line

Hitachi High-Tech AC Brushless Hammer Line application

Hitachi has announced a new line of corded rotary hammers. They have features you’d expect like vibration reduction and durable motor housing, but with one key difference – they’ve packed a brushless motor inside. What good does that do for the Hitachi AC Brushless Rotary Hammer lineup?



It’s an interesting question considering we normally see brushless motors added to cordless tools. The benefits are nearly identical. There are no carbon brushes to replace, the motor runs cooler, longer lifespan, and greater power. Additionally, the electronic control required to run a brushless motor can pull double duty to optimize the tool’s controls as well. We just won’t see extended run time as a benefit.

Each of the new Hitachi AC Brushless Rotary Hammer models have a few things in common. Hitachi’s Aluminum Housing Body (AHB) surrounds the motor and supports a plastic stator holder. An integrated inverter circuit ensures stable use with generator and reduces the risk of damaging internal components.

Some of the Hitachi AC Brushless Rotary Hammer models also feature User Vibration Protection (UVP) to reduce the amount of vibration that reaches the operator. Internally, a counterbalance and springs offset vibration. Combined with a shock absorbing handle, the system significantly reduces the amount of tri-axial vibration transfer.

Hitachi AC Brushless Rotary Hammer Roundup

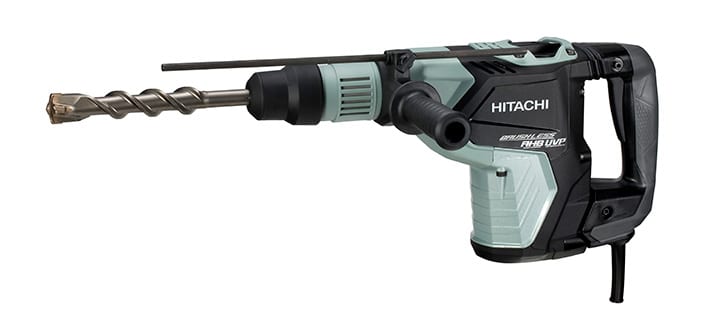

Hitachi 1-9/16″ SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH40MEY)

Hitachi SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH40MEY) - Hitachi AC Brushless Rotary Hammer

Specifications

  • Capacity: Drill bit 40mm (1-9/16″); Core bit 105mm (4-1/8″)
  • Power Input: 1,150W
  • Bit Shank: SDS max
  • Impat Energy: 8.1 ft-lbs
  • No Load Speed: 250 – 500 RPM
  • Full Load Impact Rate: 1,430 – 2,850 BPM
  • Overall Length: 18-4/5″
  • Weight (including side-handle):16.5 lbs.
  • Standard Accessories: Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case

Hitachi 1-3/4″ SDS Max AC Brushless Rotary Hammer with AHB (DH45ME)

Hitachi SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH45ME) - Hitachi AC Brushless Rotary Hammer

Specifications

  • Capacity: Drill bit 45mm (1-3/4″); Core bit 125mm (4-29/32″)
  • Power Input: 1,500W
  • Bit Shank: SDS max
  • Impact Energy: 9.9 ft-lbs
  • No Load Speed: 110V: 120 – 270 RPM / 220V: 120 – 310 RPM
  • Full Load Impact Rate: 110V: 1,200 – 2,500 BPM / 220V: 1,200 – 2,950 BPM
  • Overall Length: 21-1/16″
  • Weight (including side-handle): 19.8lbs.
  • Standard Accessories: Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case

Hitachi 1-3/4″ SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH45MEY)

Hitachi SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH45MEY) - Hitachi AC Brushless Rotary Hammer

Specifications

  • Capacity: Drill bit 45mm (1-3/4″); Core bit 125mm (4-29/32″)
  • Power Input: 1,500W
  • Bit Shank: SDS max
  • Impact Energy: 9.9 ft-lbs
  • No Load Speed: 110V: 120 – 270 RPM / 220V: 120 – 310 RPM
  • Full Load Impact Rate: 110V: 1,200 – 2,500 BPM / 220V: 1,200 – 2,950 BPM
  • Overall Length: 21-1/16″
  • Weight (including side-handle): 20.9lbs.
  • Standard Accessories: Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case

Hitachi SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH52ME) - Hitachi AC Brushless Rotary HammerHitachi 2-1/16″ SDS Max AC Brushless Rotary Hammer with AHB (DH52ME)

Specifications

  • Capacity: Drill bit: 52mm (2-1/16″); Core bit: 160mm (6-1/4″)
  • Power Input: 1,500W
  • Bit Shank: SDS max
  • Impact Energy: 16.2 ft-lbs
  • No Load Speed: 110V: 110 – 260 RPM / 220V: 110 – 280 RPM
  • Full Load Impact Rate: 110V: 1,000 – 2,200 BPM / 220V: 1,000 – 2,400 BPM
  • Overall Length: 23-1/32″
  • Weight (including side-handle): 24.2lbs.
  • Standard Accessories: Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case

Hitachi 2-1/16″ SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH52MEY)

Hitachi SDS Max AC Brushless Rotary Hammer with AHB & UVP (DH52MEY) - Hitachi AC Brushless Rotary Hammer

Specifications

  • Capacity: Drill bit: 52mm (2-1/16″); Core bit: 160mm (6-1/4″)
  • Power Input: 1,500W
  • Bit Shank: SDS max
  • Impact Energy: 16.2 ft-lbs
  • No Load Speed: 110V: 110 – 260 RPM / 220V: 110 – 280 RPM
  • Full Load Impact Rate: 110V: 1,000 – 2,200 BPM / 220V: 1,000 – 2,400 BPM
  • Overall Length: 23-1/32″
  • Weight (including side-handle): 25.3lbs.
  • Standard Accessories: Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case

Check out Hitachi Rotary Hammer tools at Acme Tools!
