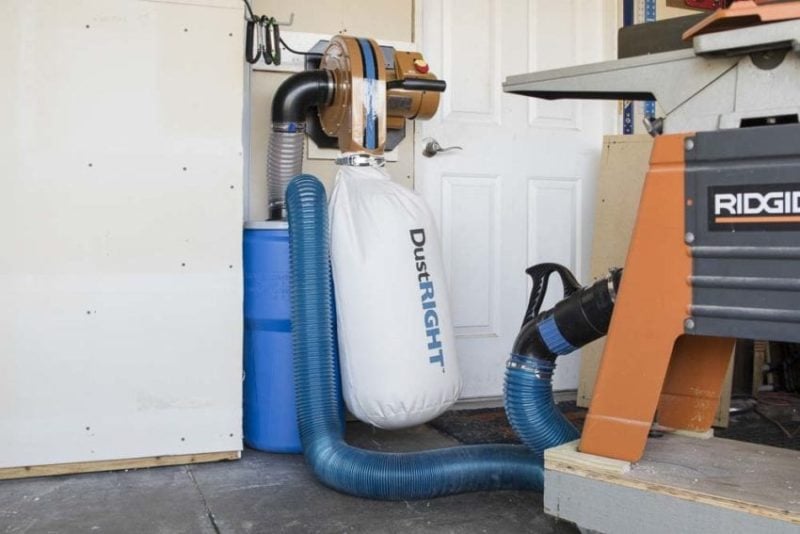

Dust Right Wall Mount Dust Collector: Model TADC-34WN

Dust Right Wall Mount Dust Collector: Model TADC-34WN

For jobsite use, we talk a lot about portable dust extractors. If you’re not mobile, dust extraction can become a semi-permanent setup in your shop. One of the advantages is a lot more CFM (air volume) than you get with most portable units. Take the Dust Right wall mount dust collector. Their model TADC-34WN is capable of 650 CFM – much greater than the 150 CFM we prefer in our jobsite dust extractors.


If you’re in a place where space comes at a premium and a 3/4 horsepower unit gets the job done, consider if the $250 Dust Right is the right fit for you.

Noteworthy Features

  • 12 Amp, 3/4 horsepower motor: At just 12amp, you only need a 110V ac plug at your disposal – perfect for garages, sheds, and small shops.
  • 650 CFM: gives you much greater air volume than a portable dust extractor or shop vacuum.
  • 15-gallon capacity: The included bag will hold up to 15 gallons, though you’ll probably want to empty it before it gets that full for the best performance.

Additional Feature Notes

The collection bag is rated to 30 microns. To put that in perspective, most portable dust extractor systems are set up with either 2-micron paper filters or 0.3 micron HEPA filters. This bag is much more porous, relatively speaking. With that in consideration, you might want to spend an extra $33 on the 5-micron bag or step up your game $200 for the 1-micron canister filter. Just keep in mind there’s a balance. The finer the filter, the more restricted the airflow.

What About Using the Dust Right Wall Mount Dust Collector?

There are a bunch of options to add to the dust collector based on how your shop is set up. Head over to Shop Tool Reviews and check out how Chris Wagoner has put the system to use at his place.

Dust Right Wall Mount Dust Collector Key Features

  • a 650 CFM suction capacity and a 3/4 HP, 60 Hz, 110 Volt, 12 amp motor
  • mounts in seconds with a simple Z-bracket
  • portable – just set up a few Z-brackets around your shop or house
  • comfortable foam-gripped handle makes transportation and setup a breeze
  • motor features a sealed shaft and bearings for quiet, long lasting operation
  • inlet accepts 4″ hose
  • comes standard with a 15 gallon, 30-micron bag

Dust Right Wall Mount Dust Collector Specifications

  • Model: Rockler Dust Right TADC-34WN
  • HP: 3/4 HP
  • Amps: 12
  • Volts: 110
  • Decibel Rating: 80-85db
  • Capacity: 15 Gallons
  • Flow Rate: 650 CFM
  • Filter Type: Bag
  • Height: 48″
  • Weight: 50 lbs
  • Includes: Dust Right Wall Mount Dust Collector, Wall Mounting Z-Bracket, 30 Micron Bag
  • Warranty: 1 year limited
  • Price: $249.99
