Cordless ratchets have come a long way over the last several years, featuring stronger motors, better ergonomics, and a refined design. The latest generation of Milwaukee’s M12 Fuel ratchets is a great example of that progress.
This new batch of Milwaukee M12 Fuel cordless ratchets delivers strong performance while maintaining an impressively compact design. At first glance, they look similar—but each model is tuned for its specific drive size and intended applications. So which one is right for you? Let’s find out!
Pros
- Impressive torque specs
- High RPMs
- Lightweight design
- Slim head profile
- Interchangeable triggers
Cons
- A little pricey compared to other Pro brands
Milwaukee M12 Fuel Cordless Ratchet Performance
- No-Load Speed: 550 RPM (3052), 400 RPM (3053), 300 RPM (3054)
- Max Torque: 45 ft-lbs (3052), 70 ft-lbs (3053), 80 ft-lbs (3054)
- Anvil Type: pin detent
- Anvil Size: 1/4 in. / 3/8 in. / 1/2 in.
- Motor Type: Brushless
Speed and Power
At the heart of these M12 Fuel ratchets are brushless motors that deliver impressive speed and torque. For perspective, the 3/8-inch 3053 matches the torque specs of DeWalt’s 20V Max Atomic DCF513 with almost double the RPMs. That level of torque is especially helpful for tackling stubborn nuts, bolts, and other fasteners, while the additional speed lets you work faster than ever.
Here’s a quick look at how these ratchets compare to other Pro-focused models:
| Milwaukee 3052 | Milwaukee 3053 | Milwaukee 3054 | DeWalt DCF513 | Bosch GRC18V-60N | |
|---|---|---|---|---|---|
| Max Speed | 550 RPM | 400 RPM | 300 RPM | 250 RPM | 400 RPM |
| Max Torque | 45 ft-lbs | 70 ft-lbs | 80 ft-lbs | 70 ft-lbs | 45 ft-lbs |
| Anvil Size | 1/4 in. | 3/8 in. | 1/2-inch | 3/8 in. | 3/8 in. |
As you can see, Milwaukee sits on top of the leaderboard in terms of speed and takes the cake when you consider the torque on the 1/2-inch model. This makes a huge difference when extracting long bolts, and the impressive torque specs mean that seized nuts and bolts won’t stand a chance.
As is normal for this tool class, you can always turn the ratchet manually. Sometimes you want to avoid overdriving fasteners, so you feather them down with the motor, then give it the final hand turn to feel how much torque you’re applying. Other times, a nut or bolt might need a little help breaking free. Either way, you don’t lose the ability to use the ratchet by hand just because you added a motor.
Milwaukee M12 Fuel Cordless Ratchet Design Notes
- Model: Milwaukee 3052 (1/4 in.), Milwaukee 3053 (3/8 in.)
- Power Source: Milwaukee M12 battery
- Weight:
– 1/4-Inch 3052: 1.5 lbs (bare tool), 1.9 lbs ( with CP2.5Ah battery)
– 3/8-Inch 3053: 1.6 lbs (bare tool), 2.0 lbs (with CP2.5Ah battery)
– 1/2-Inch 3054: 1.7 lbs (bare tool) - Tool Length: 12 in. (both models)
- Head Width: 1.1 in. (both models)
- Head Depth: 1.3 in (3052), 1.4 in. (3053)
Size and Weight
The Milwaukee 3052 and 3053 are nearly identical in weight, at 1.9 and 2.0 pounds, respectively, with the recommended CP2.5Ah batteries. Both models measure 12 inches in length, which is a little shorter than what we’ve seen from other 18V/20V models.
Author’s Note: We did not have the 1/2-inch 3054 in house for testing, so weight is based on MIlwaukee’s data
Ratcheting Head
Looking towards the business end, the ratcheting head is actually quite narrow compared to many of the other models we’ve tested. The head is a mere 1.1 inches wide, and the 1/4-inch 3052 is 1.3 inches deep, while the 3/8-inch 3053 is 1.4 inches deep. You also get about 1.6 inches of reach from each model, but given their narrow profiles, I believe you’ll still have plenty of room in those cramped engine bays.
Interchangeable Triggers

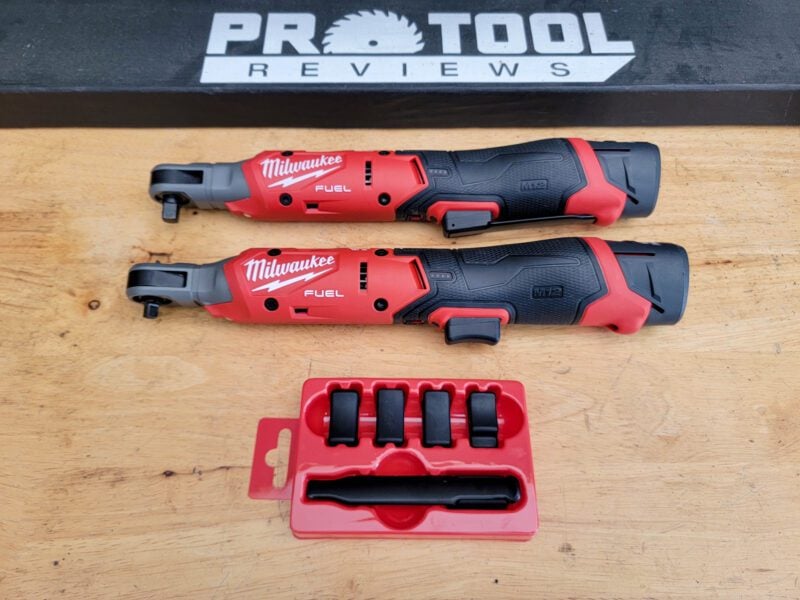

One of the most interesting features on these ratchets is the modular trigger system. The ratchets come with a standard button trigger installed, but an additional paddle trigger is included in the box if you prefer that style.
In just a second or two, you can swap the trigger cap to change the activation style. The system supports five trigger configurations that you can buy separately, so you can choose the one that best fits your workflow.
Some folks may prefer the traditional paddle-style trigger, which feels similar to a pneumatic ratchet. Others may favor a more compact button-style configuration for tighter spaces.
The modular design gives you the flexibility to adapt the tool to your preferences rather than forcing you to adapt to the tool.
Additional Features
- LED Work Light: Illuminates your work area.
- Oversized Directional Knob: Quickly change rotational direction, even while wearing gloves
- Sliding Trigger Lock: Helps prevent accidental activation during transport
Milwaukee M12 Fuel Cordless Ratchet Price
As cordless ratchets go, Milwaukee’s price point is set in the premium category. What’s interesting is that there is no price variation across the three sizes. They all retail for $229 as a bare tool, $329 as a kit, and are backed by a 5-year warranty.
The Bottom Line
The Milwaukee M12 Fuel cordless ratchets show how far cordless ratchet technology has progressed. They combine a compact size, strong torque, and thoughtful features such as the modular trigger system that help you customize the tool to fit your personal preferences.
Whether you’re working in automotive repair, equipment maintenance, or you just like to tinker, these tools deliver a balance of speed, control, and accessibility that makes fastener removal and installation faster and easier.
The real crowning achievement for Milwaukee is that they managed to pack a ton of power into a compact, lightweight package. The only real downside is that this brute strength comes at a heavy price. For some folks, this might not be worth the upgrade. But if you’re looking for top-tier performance on the M12 Ful platform, these models are well worth a look.
