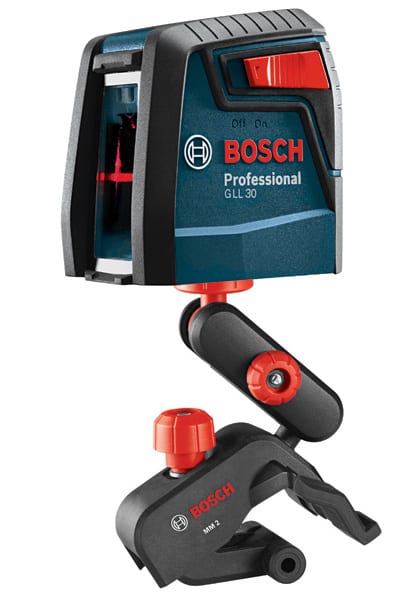

Bosch GLL 30 Self-Leveling Cross-Line Laser

Bosch GLL 30 Self-Leveling Cross-Line Laser application

Bosch is bringing another affordable cross line laser to the market in the form of the new Bosch GLL 30. It’s strikingly similar to the GLL 2 at first glance, but there are some changes in the newer model. With the recent drop in price for the GLL2, it’s a decent bet that we’re looking at the replacement model moving forward.

Starting with the housing, the dimensions have changed to be a bit more compact, though the weight remains the same at half a pound. It’s still a plastic composite housing and includes 1/4 inch threading to mound on a tripod. It is kitted with the MM2 Flexible Mounting Device that can clamp on to objects 1/2 inch to 2-1/4 inches thick.

Internally, the range is still 30 feet with a Class II laser that is now slightly brighter at 635 nm (the last model was 650 nm and optimal for human vision is green in the 520 – 570 nm range). The accuracy has loosened up a little bit, moving from 3/16 inch to 5/16 inch at 30 feet. While it’s only an 1/8 inch difference, precision-oriented users may not find this to be acceptable.

The pendulum system is self-leveling up to 4 degrees with an out-of-level indicator. A pendulum lock has been included to make transportation a little safer for the unit. The lock automatically engages when the Bosch GLL 30 is turned off. When you want to mark angles intentionally, manual mode can be engaged.

“Basic functionality doesn’t mean the tool isn’t versatile. That’s certainly the case with the Bosch GLL 30. This tool has very bright cross-lines lines at 30 ft., can lock lines at any angle, and comes with a flexible mounting device that clamps on virtually any surface to project lines from any height or angle, which for many professionals and DIYers is what’s needed. It’s small and compact, but it gets the job done with precision.”

– Jessica Davies, Product Manager, Measuring Tools, Robert Bosch Tool Corporation

Bosch GLL 30 Self-Leveling Cross-Line Laser Key Features

  • Cross-line mode
  • MM 2 Flexible Mounting Device
  • Smart Pendulum System for self-leveling
  • Pendulum locks when switched off
  • Manual mode for angled lines
  • 1/4 inch diameter tripod threading
  • Clamp grips from 1/2″ to 2-1/4″

Bosch GLL 30 Self-Leveling Cross-Line LaserBosch GLL 30 Self-Leveling Cross-Line Laser Specifications

  • Power Source: 2 AA batteries
  • Range: Up to 30-ft.
  • Material: Plastic composite
  • Accuracy: ±5/16″ at 30 ft
  • Laser Diode: Class II, 635 nm
  • Mount Threading: 1/4″
  • Leveling Type: Self-Leveling, Up to 4°
  • Operating Temperature: 41° F – 104° F
  • Width: 2.2″
  • Length: 2.8″
  • Weight: 0.5 lbs
  • Includes: MM 2 Flexible Mounting Device, (2) AA Batteries
  • Warranty: 1-year Limited
  • Price US: $69.97; Canada: $84.99
