Kreg Hardware Installation Jigs

Kreg Hardware Installation Solutions

New Kreg Hardware Installation Jigs Cover Cabinets, Concealed Hinges, and Drawer Slides

Kreg continues to narrow the gap between the amateur and professional carpenter with the introduction of three new Kreg hardware installation jigs. Well-known for their pocket hole jigs (along with measuring, cutting, and routing solutions), Kreg pushes deeper with the cabinet hardware jig, 35 mm concealed hinge jig and bit, and drawer slide jig.


These new products make a lot of sense as additions to the Kreg family. You can already layout, guide saws, clamp, rout, and join wood together with Kreg products, so hardware installation is the finishing touch.

Now you’ll be able to start with lumber and end with a finished product using those signature blue Kreg tools at every step. We love our K4 jig, so we’re anxious to to see what kind of results we’ll get from the new Kreg hardware installation jigs. In the meantime, here’s what to expect.

Kreg Hardware Installation Jigs

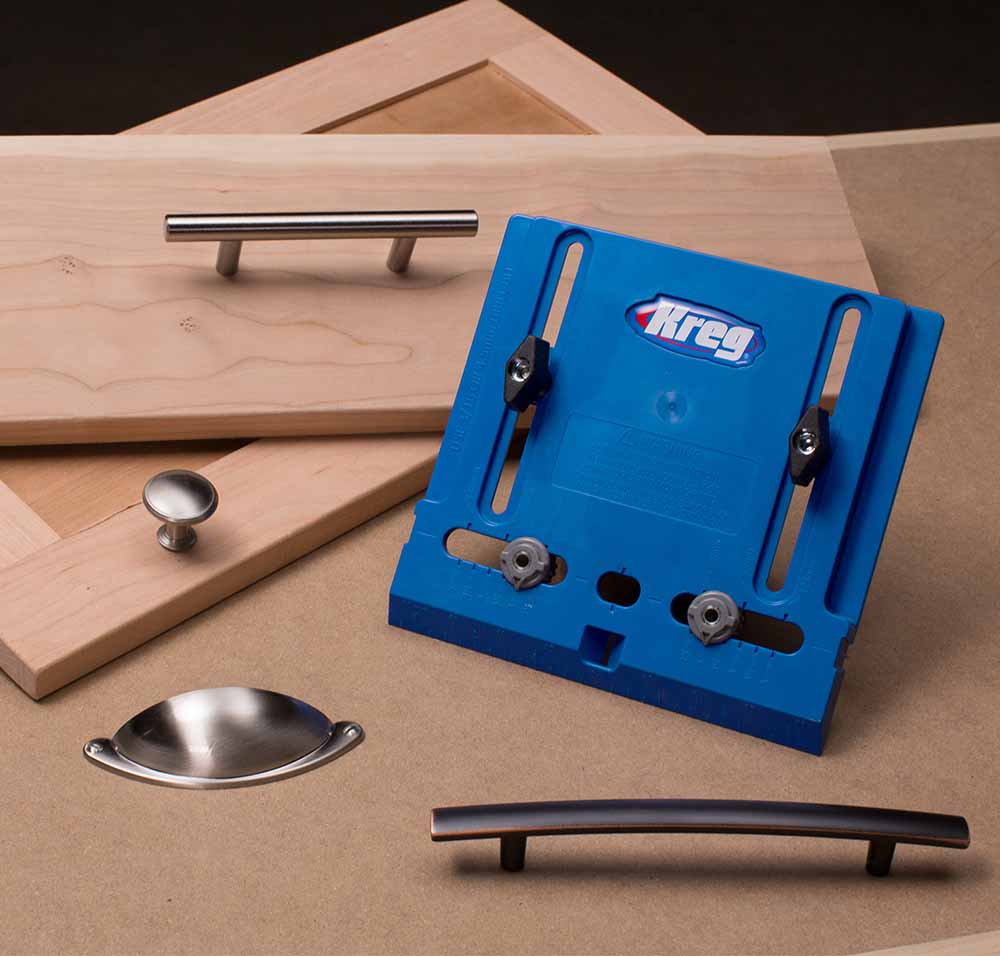

Cabinet Hardware Jig Features

  • Adjustable guides help place accurate holes
  • Built-in measuring scales make your results repeatable
  • Allows for single and multi-hole knob mounting
  • Simple positioning with adjustable edge guide
  • Materials chosen for light weight and strength
  • Drill guides made from hardened steel

Cabinet Hardware Jig Specifications

  • Cabinet Hardware Jig (Item# KHI-PULL)Construction: Polycarbonate/ABS
  • Drill guides: two 3/16″ (5 mm) guides, movable, with locking nuts
  • Drill guide material: Hardened steel
  • Drill guide spacing: 21/2″ (64 mm), 3″ (76 mm), 31/2″ (89 mm), 4″ (101 mm), 41/2″ (115 mm), 5″ (127 mm); 64 mm, 96 mm, 128 mm
  • Edge guide to hole-center spacing: 1″ to 5″ (25 mm-127 mm)
  • Measuring scales: Imperial and metric
  • Includes: Jig Base and Edge Guide, (2) Drill Guides with knurled nuts, (2) Non-slip pads, (2) T-knobs and bolts, Owner’s Manual with complete instructions
  • Price: $24.99 (US), $32.99 (Canada)
  • Available: September 1, 2016

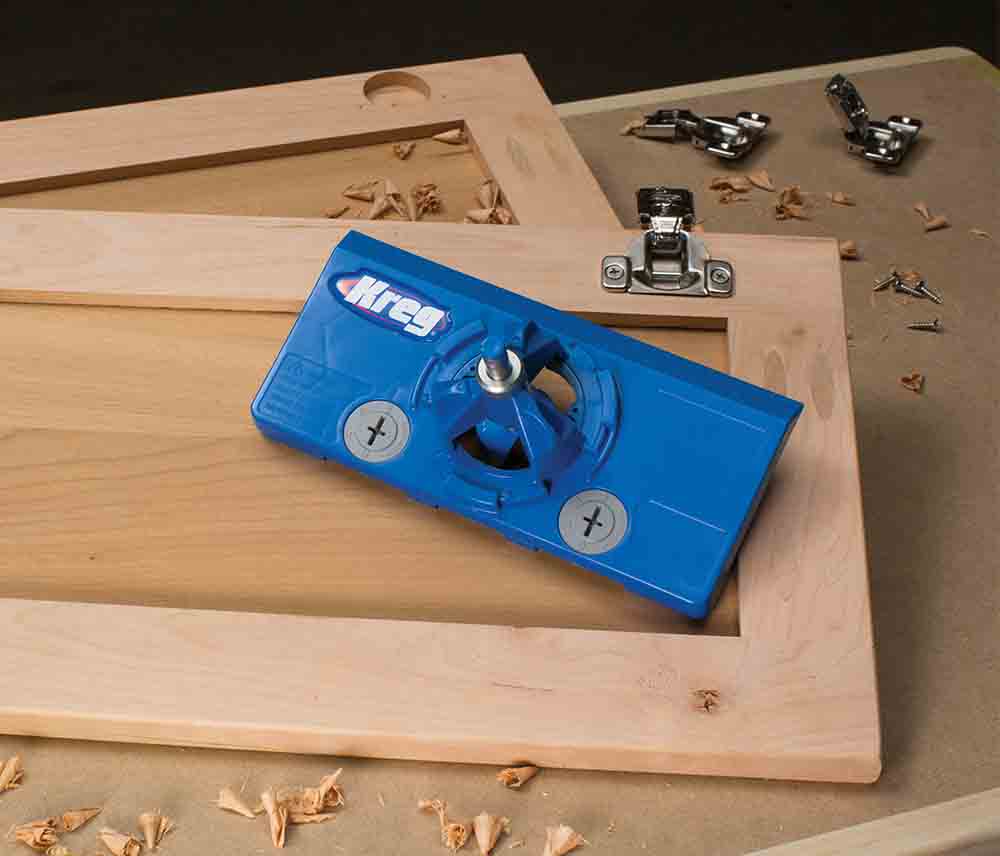

Concealed Hinge Jig Features

  • Built-in indexing tabs offer accurate hinge positioning
  • Built-in measuring scales make results repeatable
  • Bit guide and stop collar control drilling
  • Work with any drill
  • Proper hinge offset accomplished with adjustable cams
  • Includes carbide-tipped drill bit
  • Materials chosen for light weight and strength

Concealed Hinge Jig Specifications

  • Concealed Hinge Jig (Item# KHI-HINGE)Construction: Glass-filled nylon
  • Hinge compatibility: 35 mm cup-style concealed hinges
  • Hinge offset: 3 mm, 4 mm, 5 mm, 6 mm
  • Drill bit, four-cutter carbide tipped with stop collar
  • Hinge offset from door end: 2″ (50 mm) to unlimited
  • Includes: Jig base with index cams, Drill guide, 35 mm carbide-tipped drill bit, Stop collar with hex wrench, Owner’s Manual with complete instructions
  • Price: $29.99 (US), $39.99 (Canada)
  • Available: September 1, 2016

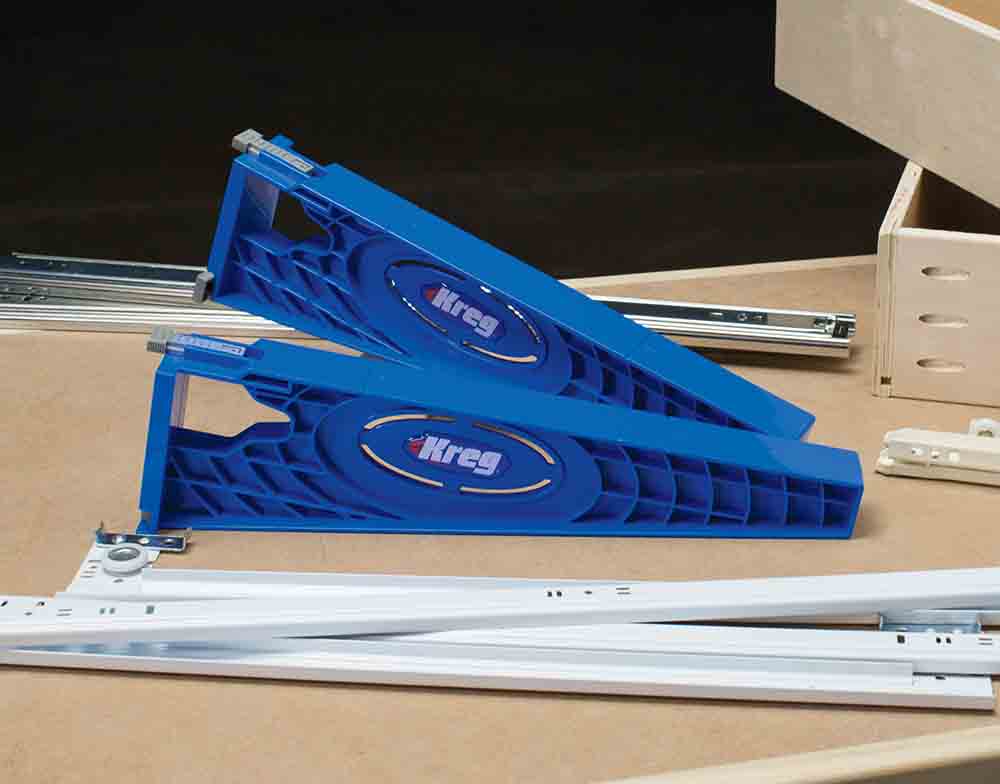

Drawer Slide Jig Features

  • Built-in indexing tabs offer accurate hinge positioning
  • No measuring and marking needed to repeat results
  • Useful for cabinets, cases, and more
  • Reversible so you can mount slides to cabinets and drawer boxes
  • Securely holds slides in place while you work
  • Materials chosen for light weight and strength

Drawer Slide Jig Specifications

  • Drawer Slide Jig (Item# KHI-SLIDE)Construction: polycarbonate/ABS
  • Cabinet compatibility: Face-frame and frameless
  • Slide length compatibility: 12″ (30.5 cm) and longer
  • Slide type compatibility: ball-bearing, epoxy-coated, undermount
  • Positioning sliders: two per bracket
  • Clamping positions: Multiple
  • Minimum Cabinet Depth: 14″ (35.5 cm)
  • Includes: (2) Brackets, (4) Upper/Lower Sliders–installed, Owner’s Manual with complete instructions
  • Price: $24.99 (US), $32.99 (Canada)
  • Available: September 1, 2016
