Metabo HPT Miter Saw Offers Lightweight Option for Trim Carpenters

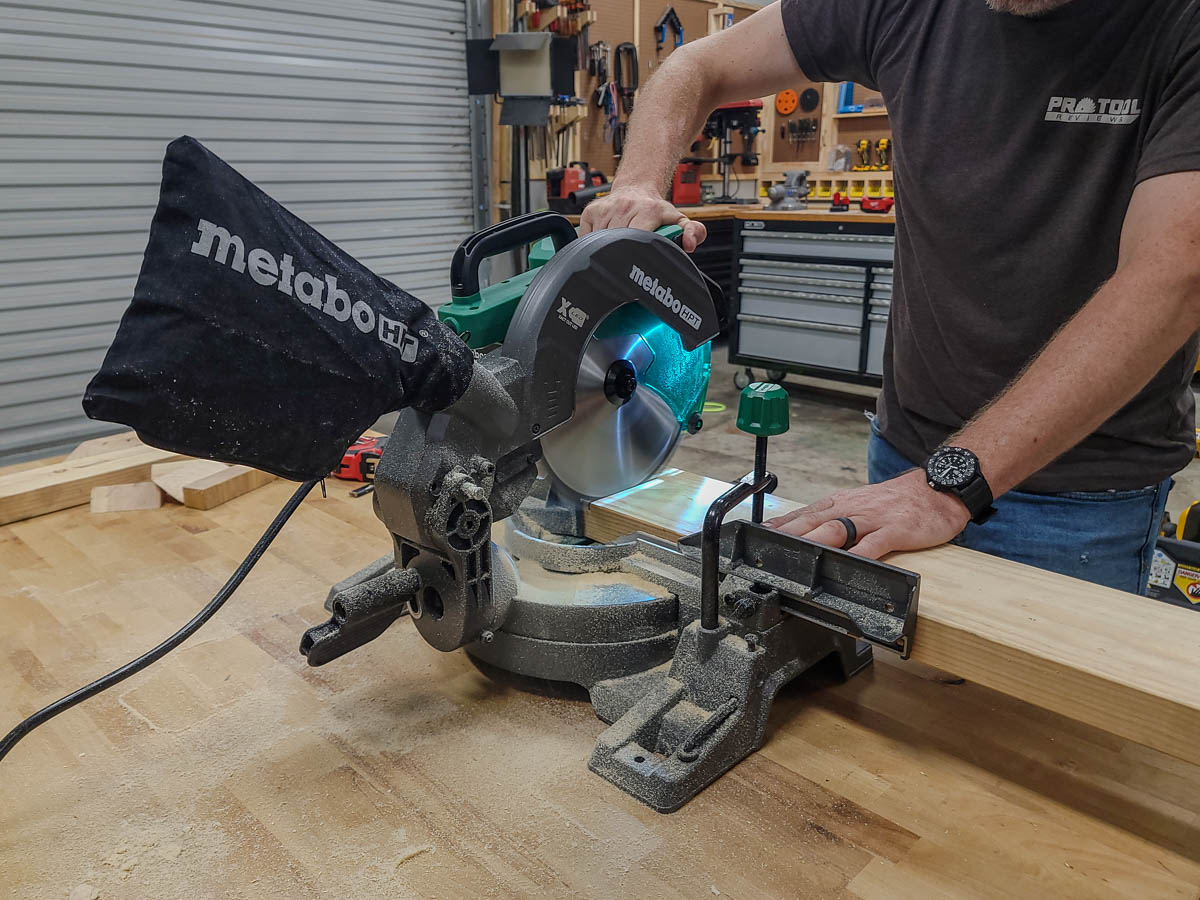

Metabo HPT has now released a next-generation corded 10-inch Single-Bevel Compound Miter Saw. This saw mirrors the previous version (C10FCGS) in many ways, but there are some key differences. We’re going to detail what it has to offer and highlight what sets this saw apart from the competition.
Metabo HPT Compound Miter Saw Performance
- No-Load Speed: 5,000 RPM
- Max Bevel: 45° (left)
- Miter Range: 52° (left and right)
- Cut Capacity @ 90°: 2×6
- Cut Capacity @ 45°: 2×4
- Motor Type: 15-amp brushed
Cutting Power
The Metabo HPT C10FCG2 features a Series Commuter Motor (a type of brushed motor) that has a top speed of 5,000 RPMs. This style of motor delivers improved speed and torque over traditional brushed motors, but they’re not as efficient as modern brushless motors. Brushless isn’t nearly as big of a deal for a corded tool, and it’s not something we would expect on a miter saw.

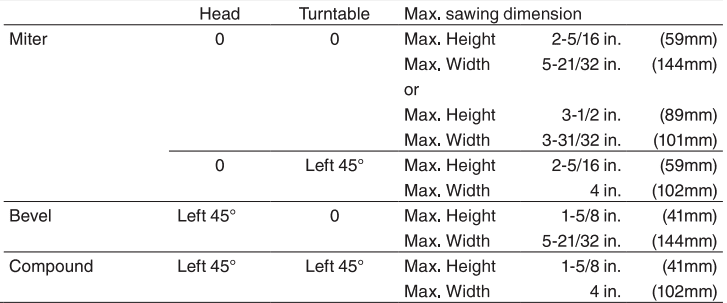

Metabo HPT tells us that this saw can make full cross cuts in 2×6 lumber at 90° and 2×4 boards at 45°. This is right in line with what we expect from a 10-inch miter saw, but these are generalize dimensions for traditional cuts. Since this model is really geared towards trim carpenters, here’s a more detailed look at Metabo HPT’s cut capacities.
These specs mean that common door and window trim, baseboard, and even nested crown moulding are all on the menu for the Metabo HPT C10FCG2 miter saw.
Miter and Bevel Adjustment
Metabo HPT didn’t stray too far from the norm when examining the adjustment points, but certain aspects really caught our attention.

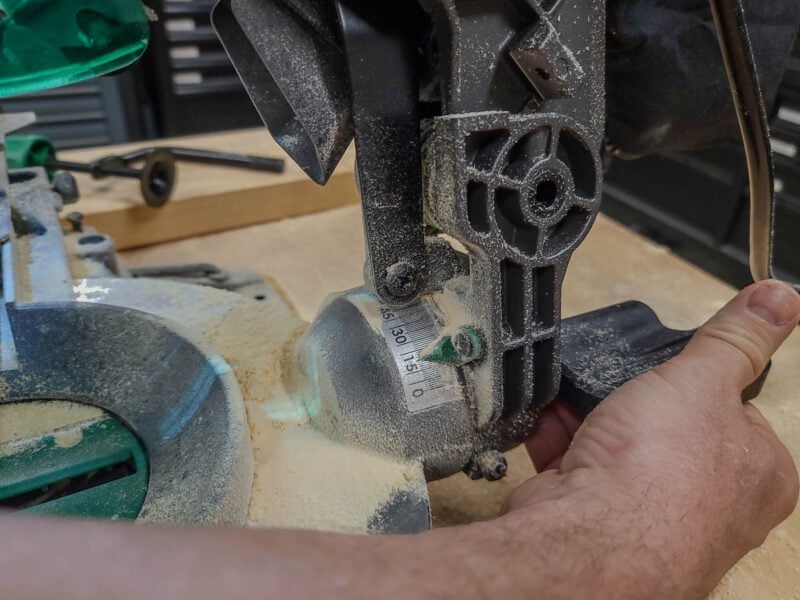

First, the bevel adjustment knob features reverse threads—meaning righty loosey, lefty tighty (those are words, right?). However, because of these reverse threads, manipulating the large knob from the front of the saw feels very natural. It’s a small detail, but it’s one that we really appreciate.

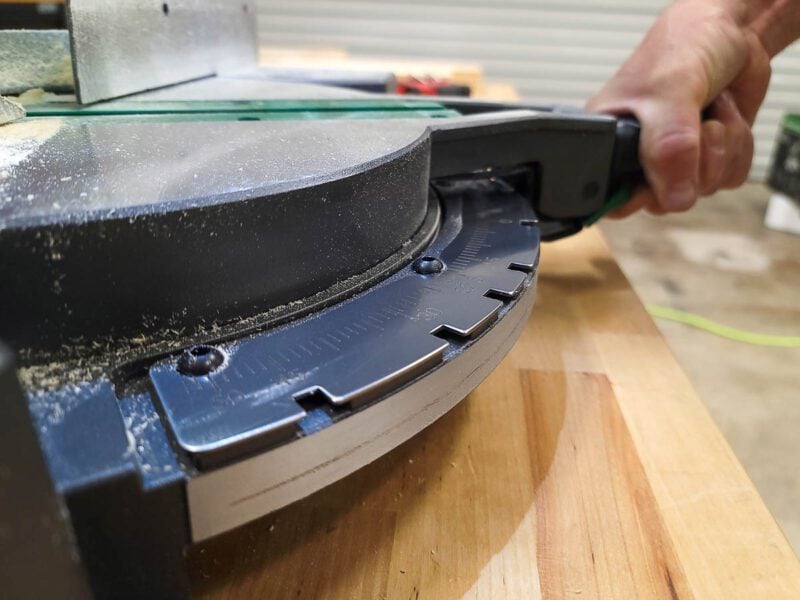

Second, the miter adjustment lever is easy to lock and manipulate, and the table slides smoothly left and right. As you would expect, there are positive detents at 15°, 22.5°, 31.5°, and 45°. Keep in mind that even though you can adjust the table all the way up to 52° left and right, there aren’t any detents past the 45° mark.
Metabo HPT Compound Miter Saw Design Notes
- Model: Metabo HPT C10FCG2
- Power Source: 120V AC
- Weight: 24.8 lbs
- Width: 18.5 in.
- Blade Size: 10 in.
Size and Weight

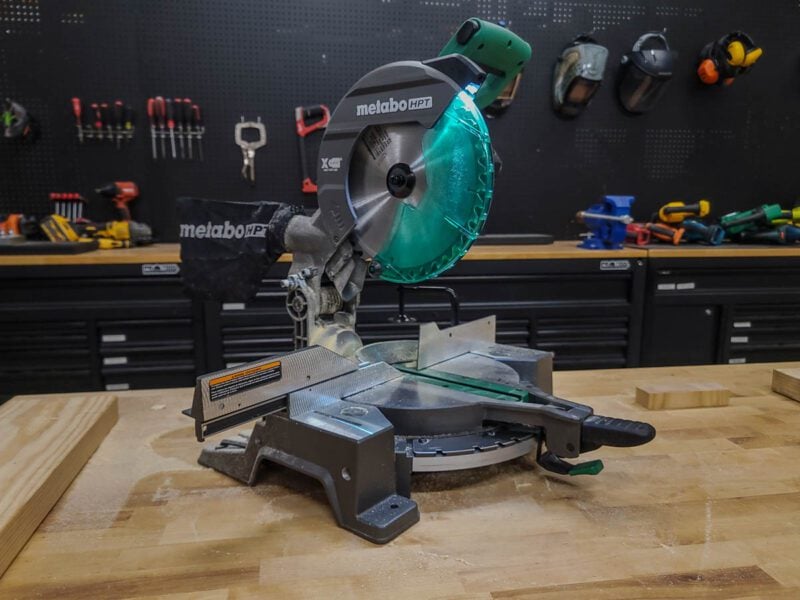

The most impressive part of this saw is its weight. This saw clocks in at just shy of 25 pounds, which is remarkable for a 10-inch miter saw. On top of that, it’s only 18.5 inches wide, making it a great option for when workspace is at a premium, or you have minimal room for storage.
These specs are incredibly similar to the Metabo HPT 18V C1810DFA, which was released a few years ago. The main difference here is the corded power source and some extra blade speed.
Grip and Trigger

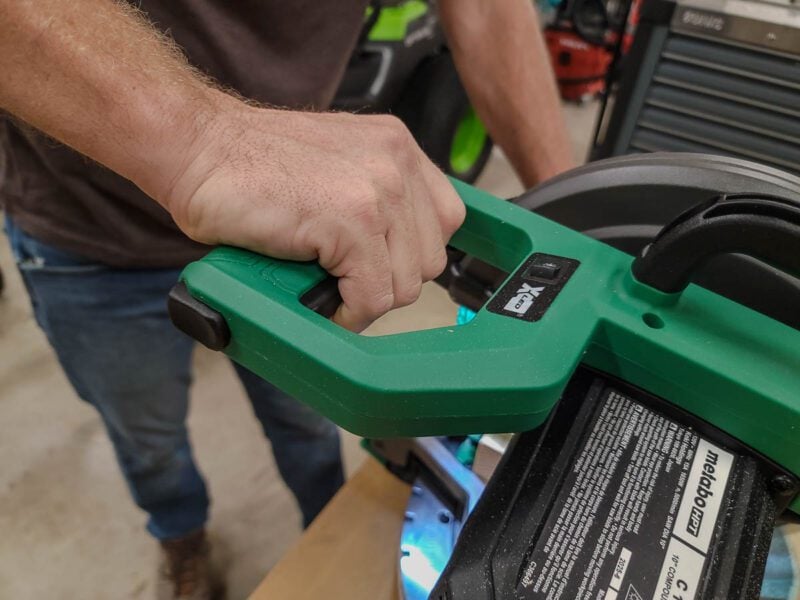

Metabo HPT opted for a horizontal grip with a 4-finger trigger and ambidextrous thumb safeties. Personally, I prefer this style because it’s very ergonomic and comfortable to use.
Here you’ll also find the power switch for your LED cut line indicator—more on that later.
Dust Collection
The dust collection system on this saw is pretty standard and features a simple dust bag and a rubber collection scoop that helps contain the particles.
The dust port is 2 inches in diameter from the inside and 2.3 inches on the outside, so you may need an adapter or two on hand if you want to pair this saw with your vacuum.
LED Cut Line Indicator

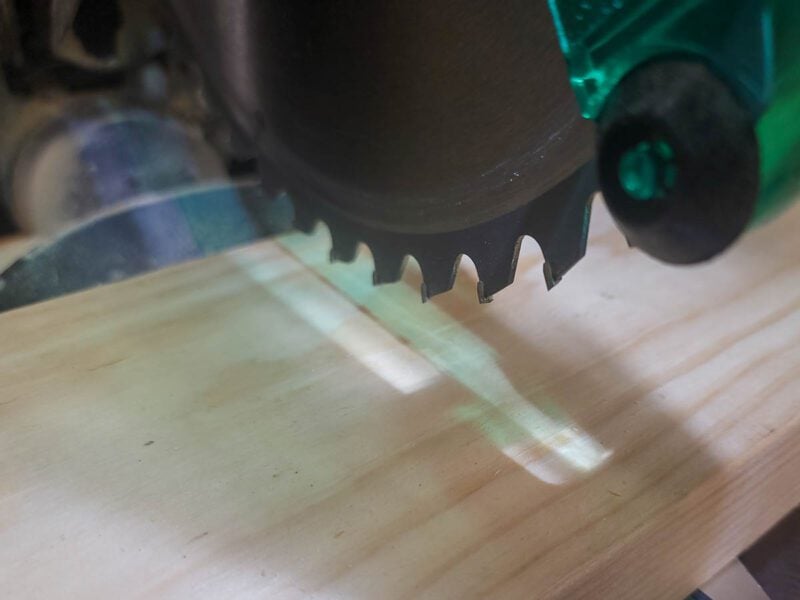

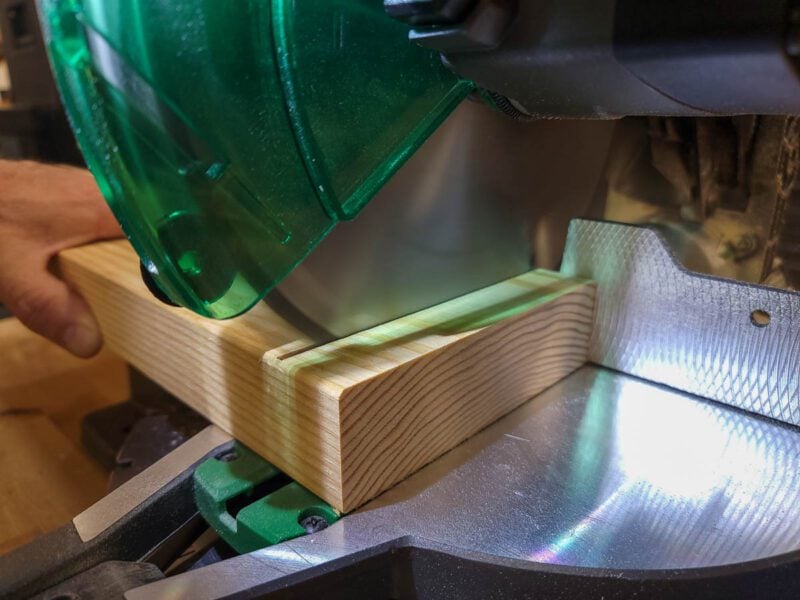

One of my favorite features on this saw is the XAct LED shadow cut line indicator. Rather than a using a laser, Metabo HPT employs a small LED light that’s positioned over the blade and casts a shadow onto your work surface. The advantage here is that this system requires zero calibration and is more visible in well-lit environments.

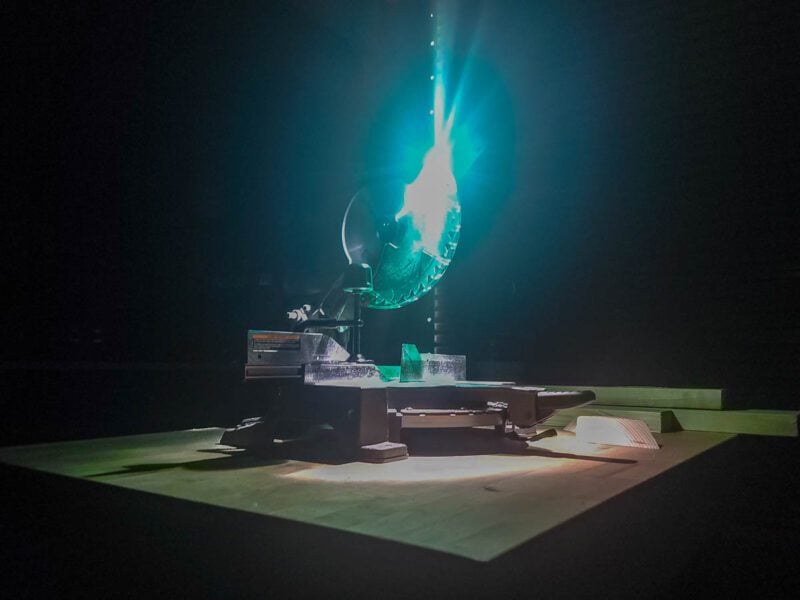

Just remember to turn off the light when you’re finished, otherwise you’ll return to your dark workshop and see the world’s strangest lamp sitting on your workbench.
Additional Features
- Two-position table clamp
- Sliding fence
- Onboard wrench storage
Metabo HPT Compound Miter Saw Price
The Metabo HPT C10FCG2 corded miter saw retails for $169, which is a heck of a pricetag for such a capable saw. On top of that, it’s backed by a 5-year warranty, so you’re covered for the long haul.
The Bottom Line
After getting some hands-on time with this saw, it’s clear that Metabo HPT isn’t trying to reinvent the wheel, but rather they’re just smoothing out the rough edges. The first generation of this miter saw (C10FCGS) is nearly identical in terms of specs, but the new design is more refined and includes a few new features that improve your overall experience.
When it comes down to brass tacks, the Metabo HPT C10FCG2 is a true value leader for the Pro and prosumer market. It delivers plenty of power and cutting capacity for trim and finish carpenters, but it can also find a home on framing projects, should the need arise.
The real question we want to answer is this: Is this the right saw for you? Well, if you’re already using the first-generation model, you really won’t reap any major benefits by making the switch since the specs are nearly identical. However, if you’re in the market for a compact, high-value compound miter saw, the Metabo HPT C10FCG2 has you covered.
There are some limitations, though. Since it doesn’t have rails, the capacity is somewhat limited—something to think about if you cut dimensional lumber frequently. It’s also a single bevel, so if all your mental math is based on a dual bevel system, you’ll have to relearn some cut angles.
