Hilti Nuron SID 8-22 7/16-Inch Impact Driver: The Utility Specialist

Impact drivers come in a lot of different shapes and sizes these days, but most of them are designed around the same basic jobs: driving screws, drilling smaller holes, and handling general fastening applications. The Hilti 7/16-Inch SID 8-22 Impact Driver takes a very different approach. We’re taking a closer look at what sets this high-powered impact driver apart from the pack, where it fits in the market, and identifying where the SID 8-22 can help the most.

Buy from Hilti

READ
Best Cordless Impact Driver Head-to-Head Review

Hilti 7/16-Inch Impact Driver Performance

Speed and Power

The SID 8-22 brings some serious numbers to the table. Hilti rates the impact driver for up to 4,425 in-lbs (369 ft-lbs) of torque in its first gear and an eye-popping 8,850 in-lbs (738 ft-lbs) in its second gear. It also produces up to 3,400 impacts per minute at top speed.

That’s considerably more torque than you’ll find on a conventional 1/4-inch impact driver, but the comparison isn’t entirely fair. Hilti isn’t trying to make a faster version of your everyday impact driver. The SID 8-22 is designed to handle large-diameter drilling and fastening applications that demand substantially more muscle. These are most often found in the utility industry.

The two-speed gearbox is particularly important here. Gear 1 tops out at 1,200 RPM, while gear 2 increases the no-load speed to 1,700 RPM. That lower first gear gives you more control when working with larger accessories and fasteners, while the second gear lets you pick up the pace when needed.

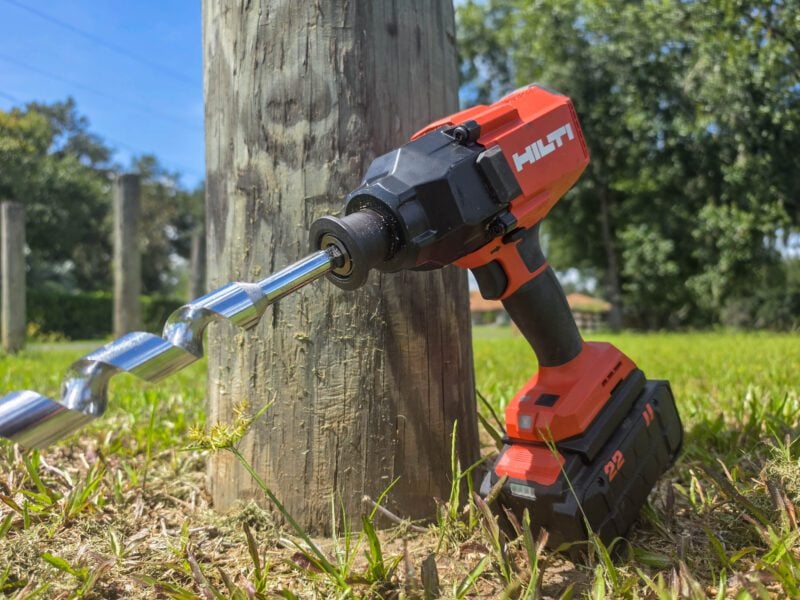

Large Diameter Drilling

Large-diameter drilling applications are where the SID 8-22 really starts to make sense.

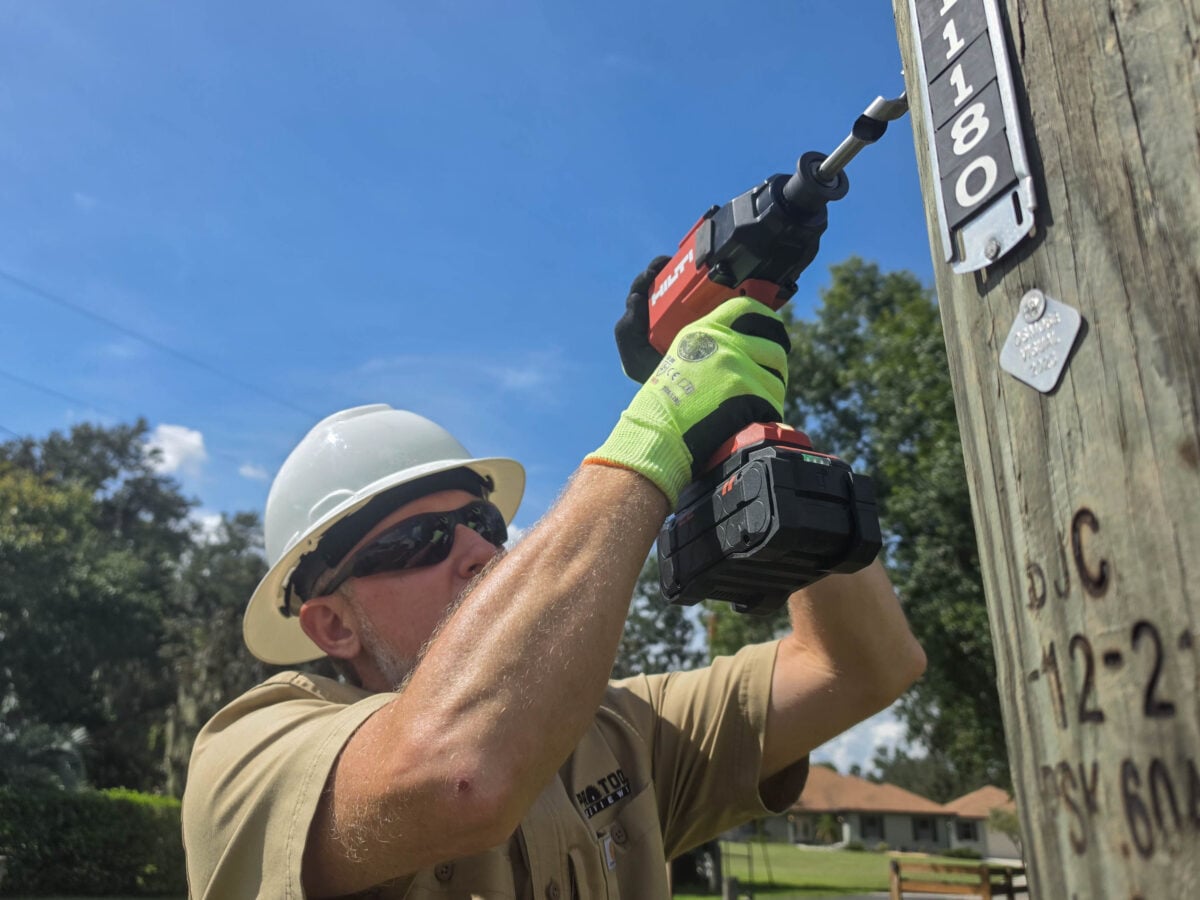

Drilling large holes in utility poles and structural timber places considerably greater demand on a cordless tool than in typical construction applications. A tool in this space needs sufficient torque to keep the bit moving as the load increases, but it also needs to maintain control when a large accessory starts to grab material.

That’s the reason for the SID 8-22’s impressive combination of a high-torque impacting mechanism and two-speed gearbox.

Keep in mind, Hilti is not trying to replace a compact drill or impact driver. Instead, the SID 8-22 is designed to provide utility crews and other Pros with a cordless option for drilling and driving applications that traditionally require substantially larger equipment. On top of that, the hammer and anvil mechanism greatly reduces the risk of a bind-up during heavy-duty applications as compared to using a high-torque drill driver, improving overall safety when working at height.

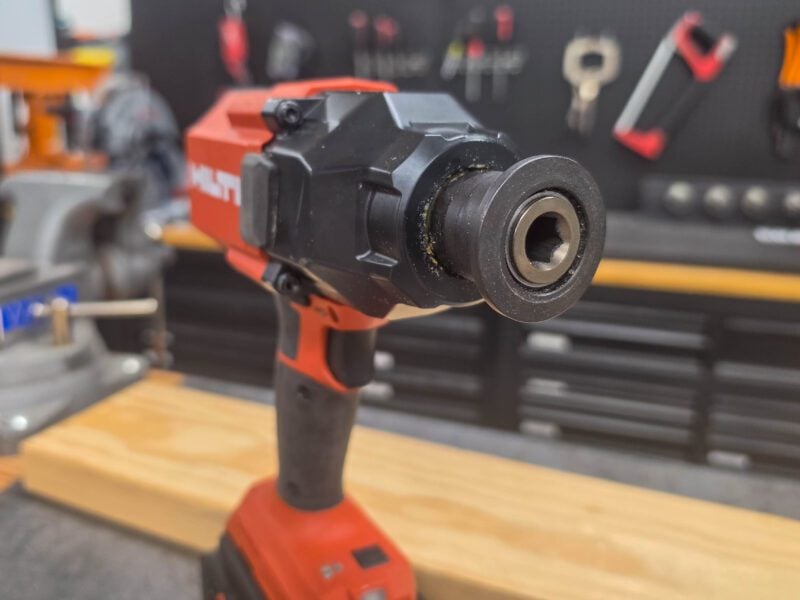

7/16-Inch Hex Chuck

Looking at the business end, the 7/16-inch hexagonal chuck is another clear indication of where Hilti expects this tool to work.

Rather than using the 1/4-inch hex interface found on most impact drivers, the larger chuck is designed for the heavier-duty accessories the SID 8-22 is intended for. With that said, the process for swapping out bits is essentially the same. You won’t see any automatic bit ejection or one-handed bit insertion here, but a simple pull of the collet releases the bit, making accessory changes easy.

This larger drive diameter also gives the tool a more substantial feel when you’re working with large drilling accessories versus a more common 1/4-inch hex shank bit. Through our years of hands-on testing, we’ve learned that 1/4-inch accessories usually fail around the 250 ft-lbs mark, and since the SID 8-22 peaks at 738 ft-lbs, those smaller bits are simply not practical for heavy-duty hard-torque applications.

All told, it’s a specialized interface, but that’s exactly what you want from a specialized tool. Hilti isn’t trying to make this a universal impact driver. It’s building the SID 8-22 around a particular class of work and equipping it accordingly, and for that, we tip our caps to the design team.

Hilti 7/16-Inch Impact Driver Design Notes

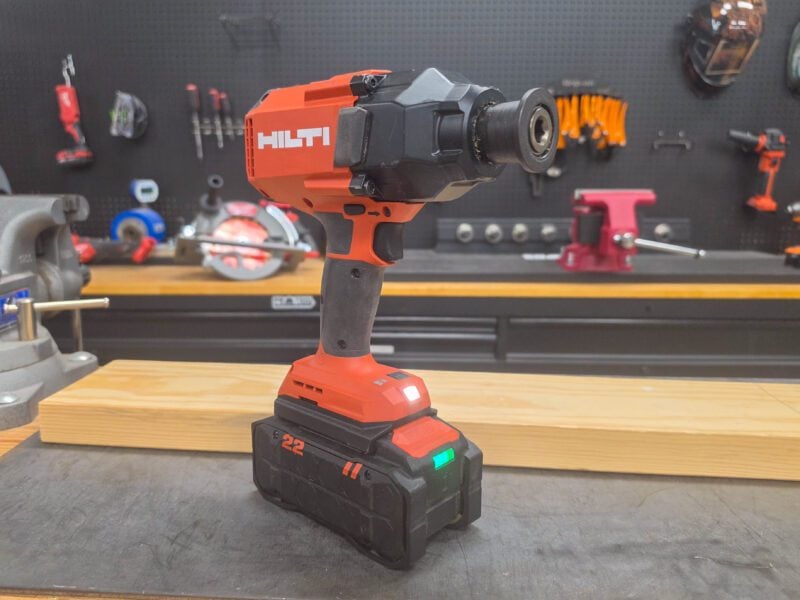

Size and Weight

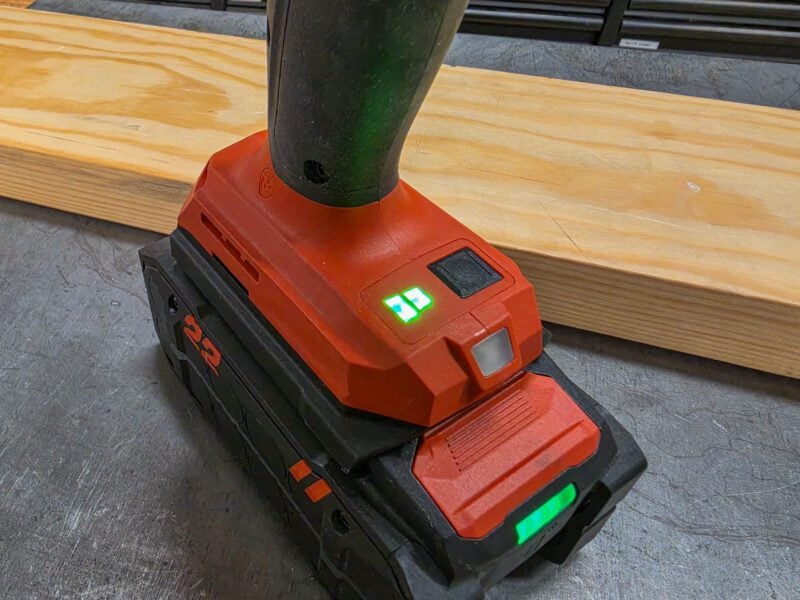

The SID 8-22 measures 8.25 inches long, 2.9 inches wide, and 7.8 inches tall, with a bare tool weight of 6.1 pounds. Adding in the recommended B22-170 7.9Ah battery brings the total weight up to 8.9 pounds, but even with those extra pounds, it’s still remarkably well-balanced. Granted, you can always lighten the load with a smaller battery, but I think the B22-170 provides decent power and offsets the weight of the motor a little better.

That said, it’s still heavier than a conventional impact driver, but the comparison isn’t particularly useful. Looking at models from Milwaukee and Makita, we see bare tool weights of 5.9 pounds and 8.1 pounds, respectively, so at least it’s in the ballpark for this tool class. Remember, you’re dealing with a tool designed to deliver several times the torque of a typical impact driver, so the extra weight comes with the territory.

Furthermore, the weight is also something I’d expect to be less of a concern when the alternative is hauling a larger corded or hydraulic model up a ladder or into a cramped bucket truck.

Ergonomics

Hilti put a major emphasis on making the SID 8-22 easier to handle despite its heavy-duty capabilities. Past models, such as the SID 8-A18, featured a longer head profile, but the SID 8-22 is much more compact, making it easier to maneuver.

That’s particularly important with this type of impact driver. When you’re dealing with thousands of inch-pounds of torque, having a tool that you can keep under control matters just as much as having the power to complete the job.

Hilti 7/16-Inch Impact Driver Price

The Hilti SID 8-22 retails for $497 as a bare tool and $659 as a kit. The kit includes the impact driver as well as two B22-85 batteries. Interestingly, Hilti doesn’t include a charger, so be sure to snap one at checkout if you’re not already on Hilti’s Nuron battery platform.

Both the bare tool and kit are backed by Hilti’s 20-year warranty.

For our Pros and tool crib managers, the SID 8-22 is also available through Hilti’s fleet pricing program, which drops the price to $16.25 per month. This also includes no-cost repairs, proactive maintenance, and theft coverage.

Should You Buy It?

The Hilti SID 8-22 is a specialty tool, and that’s both its biggest strength and its biggest limitation.

If your work involves large-diameter drilling and heavy-duty fastening in utility poles, structural timber, or similar applications, the SID 8-22 brings a level of torque that puts it in a completely different class from a conventional impact driver.

However, it’s not lightweight, so if weight is heavy on your mind, you may want to consider a lighter model, such as Milwaukee’s M18 Fuel 2865. With that said, I don’t think this particular characteristic should count against it. After all, Hilti built this tool to tackle heavy-duty drilling and driving tasks where that raw power matters more than shaving a few inches or pounds from the package.

The bigger question is whether you actually need this much tool.

For a GC, remodeler, or serious DIYer who already uses an impact wrench for large structural fasteners, the SID 8-22 is probably far more tool than necessary. For utility crews and Pros regularly drilling large holes and installing substantial structural hardware, it’s a much more compelling proposition.

Again, the SID 8-22 doesn’t try to appeal to everyone. Instead, Hilti built it for a specific type of work and gave it the power, control, and durability to match. If you’re regularly working at the upper end of what cordless impact tools can handle, that’s exactly what you want.
