Makita Cordless Rotary Hammers Are OSHA Table 1 Compliant

Makita Cordless Rotary Hammer Kits Make Changes to Be Table 1 Compliant Out of the Box

Several of Makita’s brushless rotary hammers will now come OSHA Table 1 compliant out of the box. They make it happen by including a dust case that has an integrated filter cleaning mechanism and a HEPA filter. Now you can drill and chip away without worrying about other methods of staying under the PEL.

To comply with OSHA’s Table 1 rule for concrete drilling applications, the dust extractor must include a filter cleaning mechanism. Some applications also require a HEPA filter instead of the standard filters that come with many extractors.

Makita has three onboard extractors to help meet those requirements. The DX08 and DX09 are ready to go as-is. The DX01 doesn’t come with a filter cleaning mechanism, but you can swap out the dust case with part #199588-6 to add it.

The dust extractors are powered by separate motors to allow the rotary hammer to maintain peak drilling performance. They are activated by the tool and provide a delay to help capture any remaining dust when you power down the tool.

Transparent dust containers help you easily see when you need to empty them and the DX08/09 models feature LED lights.

Makita Table 1-Ready Rotary Hammer Kits

Here are the kits Makita put together that have everything you need to be Table 1 compliant from the start. Note that some retailers may still be shipping units with the DX01 that doesn’t have the filter cleaning dust box.

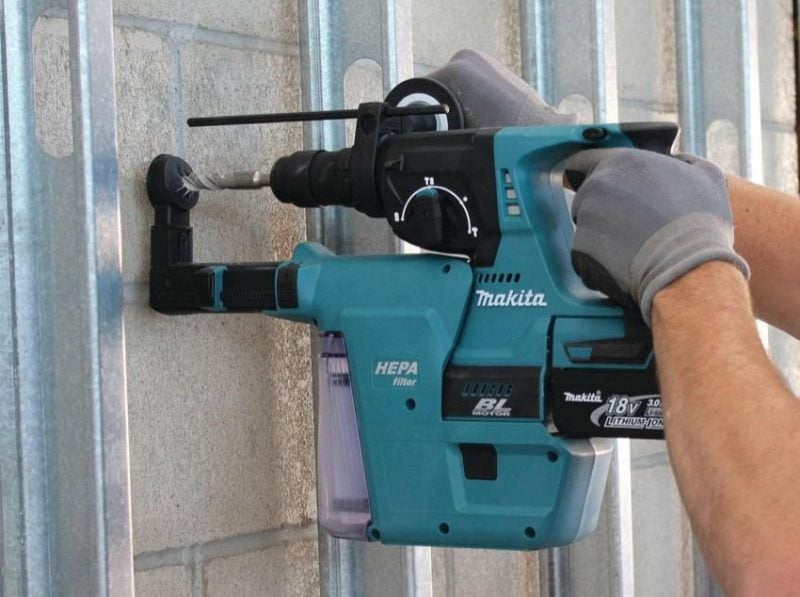

XRH01ZVX 18V LXT Brushless 1″ SDS-Plus Rotary Hammer

• Tool and HEPA dust extractor only
• 0 – 950 RPM
• 0 – 4700 BPM
• 1.7 ft-lbs impact energy
• DX01 dust extractor with filter cleaning and HEPA filter
• $399

Get Yours on Amazon Get Yours at Acme Tools

XRH011TX 18V LXT Brushless 1″ SDS-Plus Rotary Hammer

• Tool, HEPA dust extractor, two 5.0Ah batteries, and Rapid Optimum Charger
• 0 – 950 RPM
• 0 – 4700 BPM
• 1.7 ft-lbs impact energy
• DX01 dust extractor with filter cleaning and HEPA filter
• $639

Get Yours on Amazon Get Yours at Acme Tools

XRH08PTW 18V X2 LXT 1-1/8″ SDS-Plus AVT Rotary Hammer

• Tool, HEPA dust extrator, two 5.0Ah batteries, and dual-port Rapid Optimum Charger
• 0 – 980 RPM
• 0 – 5000 BPM
• 2.3 ft-lbs impact energy
• DX08 dust extractor with filter cleaning and HEPA filter
• Anti-Vibration Technology (AVT)
• $599

Get Yours on Amazon Get Yours at Acme Tools

XRH10PTW 18V X2 LXT AWS-Ready 1-1/8″ SDS-Plus AVT, AFT Rotary Hammer

• Tool, HEPA dust extrator, two 5.0Ah batteries, and dual-port Rapid Optimum Charger
• 0 – 980 RPM
• 0 – 5000 BPM
• 2.3 ft-lbs impact energy
• DX08 dust extractor with filter cleaning and HEPA filter
• Anti-Vibration Technology (AVT)
• Active Feedback-Sensing Technology (AFT)
• Auto-Start Wireless System-ready (AWS)
• $749

Get Yours on Amazon Get Yours at Acme Tools

Makita Onboard Dust Extractor Compatibilty

DX01

• XRH01Z
• XRH011TX
• $149.99
• Replacement dust case with filter cleaning: $49.99

Get Yours on Amazon Get Yours at Acme Tools

DX08

• XRH08Z
• XRH10Z
• $169.00

Get Yours on Amazon Get Yours at Acme Tools

DX09

• XRH11Z
• $169

Get Yours on Amazon Get Yours at Acme Tools

For more information about the Makita’s out-of-the-box compliance with OSHA Table 1 standards, check out Makita’s dedicated compliance microsite.
