Review: Next-Gen Milwaukee M12 Fuel Impact Wrenches

Milwaukee Introduces M12 Lineup’s Most Compact Impact Wrenches

Earlier this year, Milwaukee announced its next-generation M12 Fuel impact wrenches: a 1/4-inch model (3048) and a 3/8-inch model (3049). Separate from the 2024 launch of the Gen-2 stubbies, these are designed to be the most compact tools in their class. But what’s beyond the buzz?

I decided to dig deeper into the claims to help you decide if these are a good fit for your automotive tool roster. Plus, we’ve got the 3/8-inch 3049 here at our shop, so we can put it to the test and see if they’re worth the hype.

READ
Best Cordless Impact Wrench Head-to-Head Review

Milwaukee M12 Fuel Subcompact Impact Wrench Performance

• Model: Milwaukee 3049 (3/8-inch)
• Max Breakaway Torque: 225 ft-lbs
• Max Fastening Torque: 200 ft-lbs
• Max Speed: 3400 RPM
• Max Impact Rate: 3600 IPM
• Anvil Type: Friction Ring

Speed and Power

The Milwaukee 3048 and 3049 impact wrenches are part of the M12 Fuel lineup. As subcompact tools, Milwaukee tells us they’re ideal for light-duty automotive applications, such as installing bumpers and fenders, under-hood fastening, suspension work, and more.

The 3049 reaches torque levels of up to 225 ft-lbs during breakaway applications and 200 ft-lbs while fastening. That’s enough power to set and remove properly set lug nuts on most passenger vehicles.

For the 1/4-inch 3048, you get up to 70 ft-lbs of fastening torque and 100 ft-lbs of breakaway torque.

Those are clearly very different performance levels, so choosing the right one is more in-depth than just sticking with your preferred drive size.

Both models feature four speed modes, including an Auto Shut-Off mode.

Here’s a look at the speed and impact rate specs for both impact wrenches in each of the four settings:

3048 (1/4-inch)

• Mode 1: 0-1500 RPM; 0-1350 IPM
• Mode 2: 0-2900 RPM; 0-3700 IPM
• Mode 3: 0-3800 RPM; 0-4400 IPM
• Mode 4 (Auto Shut-Off): 0-2200 RPM (forward)/ 0-3800 RPM – 0-1500 RPM (reverse); 0-4400 IPM

3049 (3/8-inch)

• Mode 1: 0-1150 RPM; 0-1100 IPM
• Mode 2: 0-2400 RPM; 0-3400 IPM
• Mode 3: 0-3400 RPM; 0-3600 IPM
• Mode 4 (Auto Shut-Off): 0-1600 RPM (forward) / 0-3400 RPM – 0-1500 RPM (reverse); 0-3600 IPM

Auto Shut-Off Mode

In Auto Shut-Off mode, the forward torque is limited to 15 ft-lbs in the 3049 and 7 ft-lbs in the 3048 to prevent over-tightening. In reverse, the RPMs automatically slow to a top speed of 1500 RPM once the bolt is free, reducing fastener drops.

The Auto Shut-Off feature is not unique to this model; it’s included in several Milwaukee impact wrenches on both the M18 and M12 platforms. However, we appreciate its inclusion in this subcompact model to address common fastening and breakaway pain points.

Hands-On Impressions

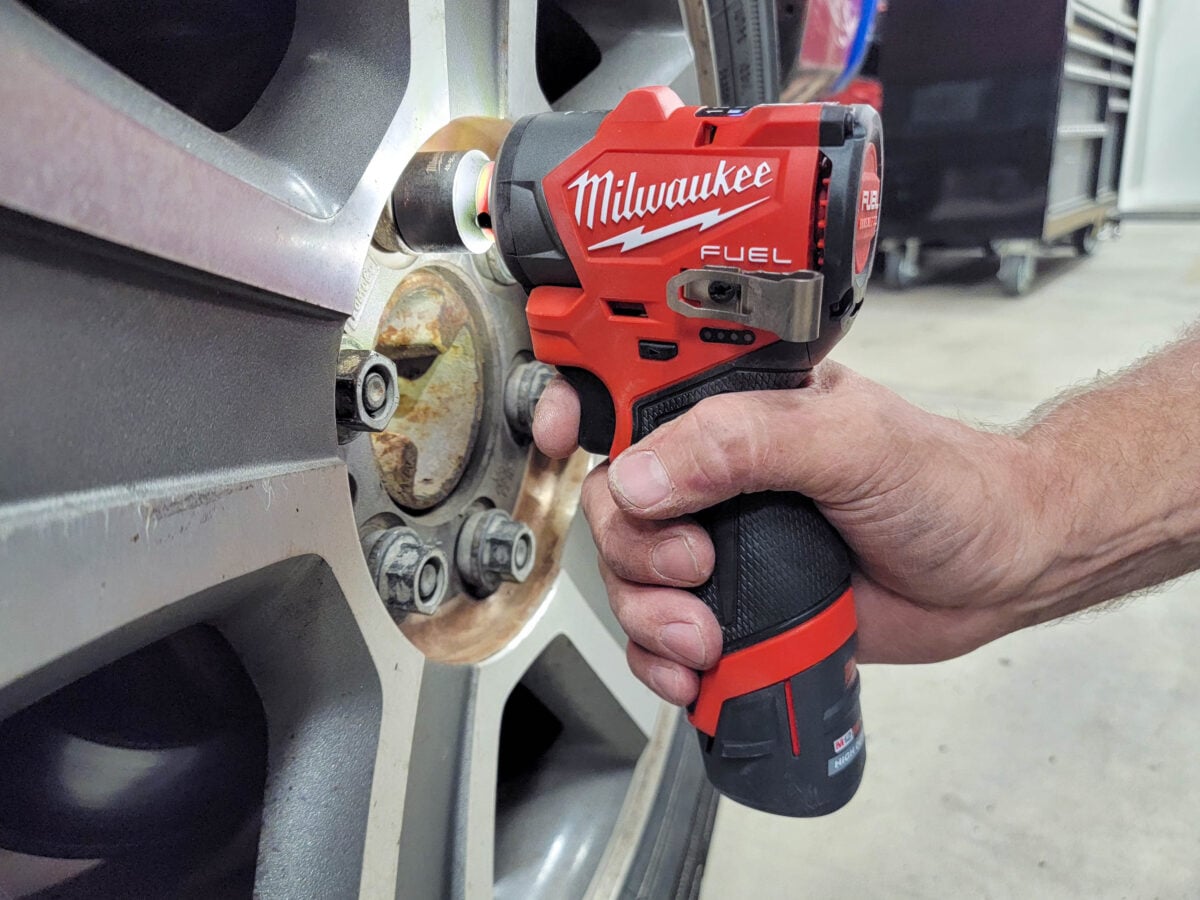

Since this is an automotive-focused tool, I decided to put it to the test by removing a few lug nuts on my truck to see how it would perform. My lug nuts are tightened down to 94 ft-lbs, so the 3049’s 200 ft-lbs of breakaway torque should be more than enough.

As expected, the nuts came off easily, so I decided to test out the Auto-Stop mode. In this application, the Auto-Stop mode worked flawlessly, stopping the socket once the lug nut was loose and allowing me to slowly remove it in a controlled manner.

I really appreciated the size-to-weight ratio. This tool is lightweight and easy to maneuver, especially in tight spaces. I can see this as a major advantage for automotive techs, HVAC Pros, and even electricians. The small profile fits easily into cramped tool boxes, tool belts, and packs a serious punch on the performance side.

Milwaukee M12 Fuel Subcompact Impact Wrench Design

• Length: 4.4 in (3048); 4.5 in (3049)
• Weight: 1.5 lb (3048); 1.6 lb (3049)

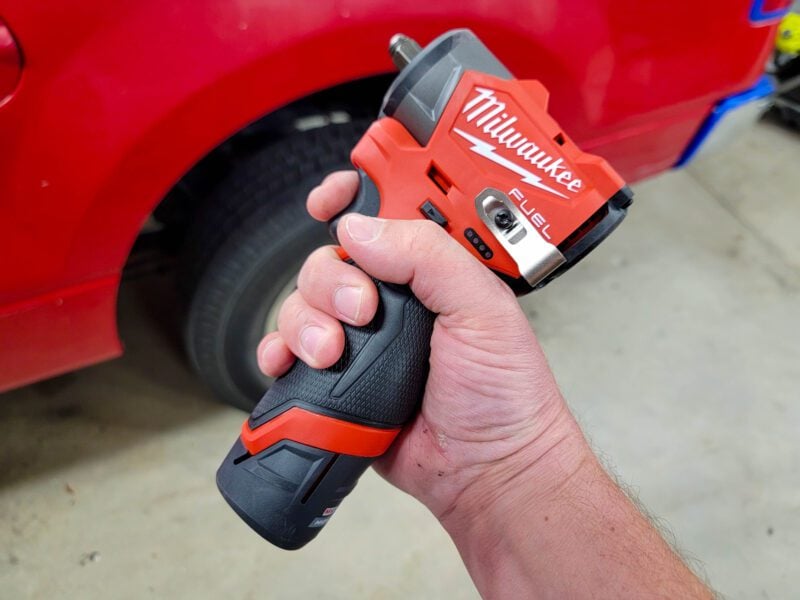

Size and Weight

The 1/4-inch 3048 impact wrench is the most compact and lightweight model in its class, at just 4.4 inches in length and 1.5 pounds bare. The 3/8-inch 3049 is just barely larger, at 4.5 inches long and 1.6 pounds as a bare tool

The 3049 is kitted with two 2.5Ah batteries, and I recommend sticking to that size if you want to take full advantage of the lightweight and compact design. However, if you prioritize runtime and you can sacrifice a bit of heft, swapping in a larger-capacity battery would still be fine.

This size of impact wrench excels in small areas, providing better underhood access in automotive applications. While some models, like Milwaukee’s Gen-II M12 stubby impact wrenches, deliver higher performance, these subcompact tools are ideal for lighter-duty fastening within tight spaces.

Mode Selection

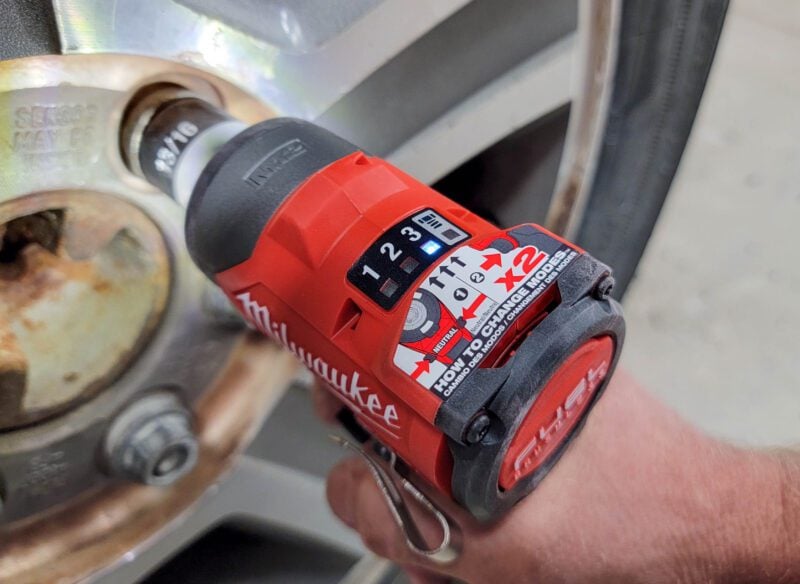

If you’re unfamiliar with Milwaukee’s latest generation of compact impact tools, you’ll want to pay attention to this section. Rather than a mode-selection button, Milwaukee employed a slick bit of tech to streamline the overall design.

To switch between modes, you need to place the directional button in the neutral position and then pull the trigger twice to advance to the next mode. Milwaukee did put an instructional sticker on top of the motor housing, but if you’re overzealous like me and automatically pulled it off, then hopefully you find this helpful.

Additional Features

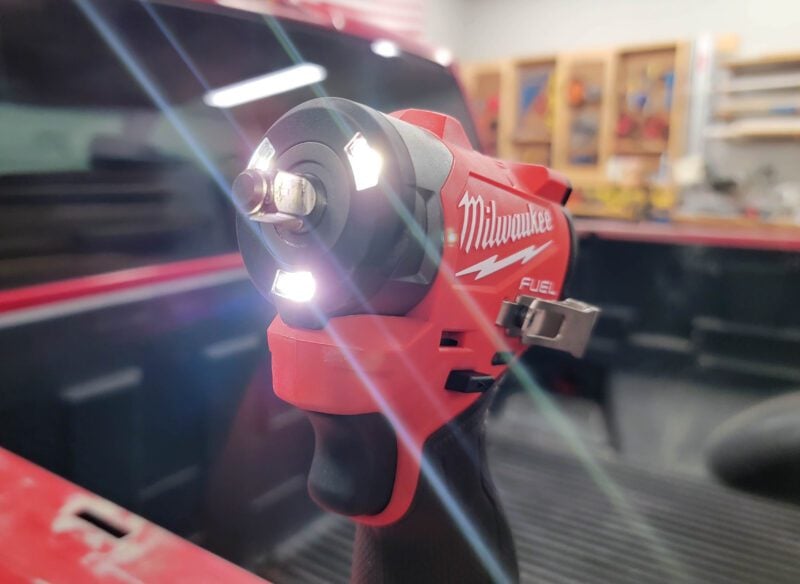

• Tri-Beam LED Light: Illuminates dark engine bays while you work.
• Reversible Belt Hook: Configure the tool to fit your preferences.

How Does it Compare?

Here’s how the Milwaukee 3049 impact wrench stacks up against other 12V subcompact models from Makita and DeWalt.

The big takeaway here is how much more fastening power Milwaukee offers to go with its impressively compact and lightweight design. Even though DeWalt has a clear performance advantage, its bulkier size won’t get into some of the spaces Milwaukee can, and it’s noticeably heavier.

Considering the number of automotive- and trade-specific tools on the M12 platform compared to Makita and DeWalt, it’s an even more compelling proposition.

Milwaukee M12 Fuel Subcompact Impact Wrench Price

The 3/8-inch 3049 retails for $229 bare and $349 as a kit, including two M12 2.5Ah batteries, a charger, and a contractor bag. At the time of writing, the 1/4-inch model (3048) is only available as a bare tool, also for $229.

Milwaukee backs both versions with a 5-year tool warranty and a 2-year warranty on the batteries.

If you’d like some added protection for your tool, Milwaukee also offers a protective boot compatible with both the 3/8-inch and 1/4-inch models, which runs $35.

Should You Buy It?

If you’re looking for a compact impact wrench that punches well above its weight class, the Milwaukee M12 Fuel 3048 and 3049 are very compelling options. They feel purpose-built for technicians and trade Pros who value access and controlled power.

The combination of these two impacts will help you get a surprising amount of work done around a passenger vehicle before having to reach up to the M18 system for more power. Even outside the automotive world, HVAC, plumbing, and electrical will love the low weight and compact sizes.

Now, if you regularly tackle heavy suspension work, rusted hardware, or high-torque applications, you’ll still need your M18 Fuel Mid-Torque at the very least. But for lighter-duty fastening and tight-space work, these subcompact impacts absolutely hit the sweet spot.

At the end of the day, Milwaukee succeeded in building a tool that feels genuinely useful rather than simply “small.” The compact size isn’t a compromise—it’s the whole advantage.
